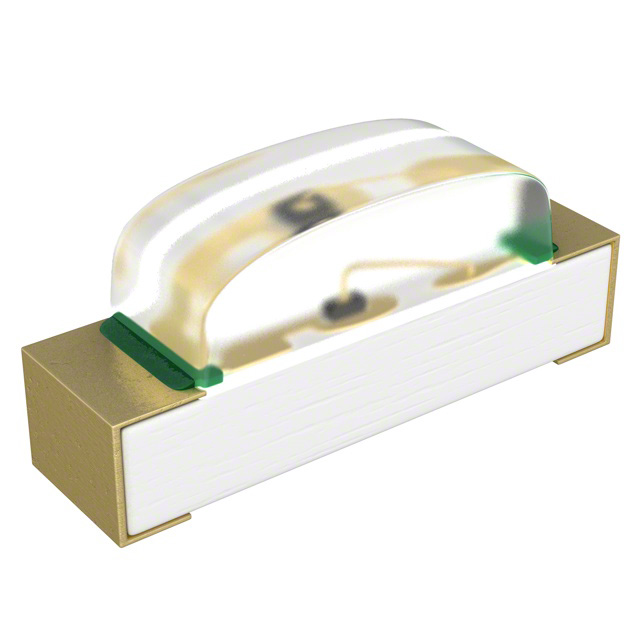

HSMW-C120
ActiveBroadcom Limited
LED COOL WHITE DIFF CHIP SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMW-C120
ActiveBroadcom Limited
LED COOL WHITE DIFF CHIP SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMW-C120 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | White |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 160 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 155 ° |
| Voltage - Forward (Vf) (Typ) | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.79 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.47 | |||
| 2000 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.79 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.47 | |||
| 2000 | $ 0.44 | |||
| Tape & Reel (TR) | 4000 | $ 0.42 | ||
| 8000 | $ 0.40 | |||
| 12000 | $ 0.39 | |||
| 20000 | $ 0.38 | |||
Description
General part information
HSMW-C120 Series
White LED Indication - Discrete 3.6V 2-SMD, No Lead
