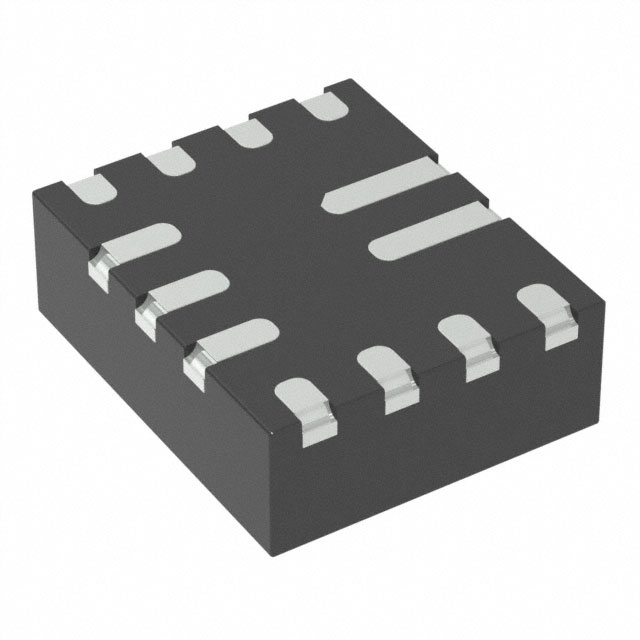

MPQ4415AGQB-AEC1-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 1.5A 13QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPQ4415AGQB-AEC1-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 1.5A 13QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ4415AGQB-AEC1-P

Current - Output	1.5 A
Frequency - Switching	2.2 MHz
Function	Step-Down
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	13-PowerVQFN
Qualification	AEC-Q100
Supplier Device Package	13-QFN (2.5x3)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	4 V
Voltage - Output (Min/Fixed)	0.8 V

MPQ4415 Series

Part	Topology	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Qualification	Output Configuration	Current - Output	Function	Grade	Voltage - Input (Max) [Max]	Frequency - Switching	Mounting Type	Supplier Device Package	Voltage - Input (Min) [Min]	Output Type	Number of Outputs	Voltage - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Contents	Regulator Topology	Supplied Contents	Main Purpose	Utilized IC / Part
MONOLITHIC POWER SYSTEMS (MPS) MPQ4415MGQB-AEC1-P	Buck	13-PowerVQFN	-40 °C	125 ¯C	0.8 V	AEC-Q100	Positive	1.5 A	Step-Down	Automotive	36 V	2.2 MHz	Surface Mount	13-QFN (2.5x3)	4 V	Adjustable	1
MONOLITHIC POWER SYSTEMS (MPS) MPQ4415MGQB-P	Buck	13-PowerVQFN	-40 °C	125 ¯C	0.8 V		Positive	1.5 A	Step-Down		36 V	2.2 MHz	Surface Mount	13-QFN (2.5x3)	4 V	Adjustable	1
MONOLITHIC POWER SYSTEMS (MPS) MPQ4415MGQBE-AEC1-P	Buck	13-PowerVQFN	-40 °C	125 ¯C	0.8 V	AEC-Q100	Positive	1.5 A	Step-Down	Automotive	36 V	2.2 MHz	Surface Mount Wettable Flank	13-QFN (2.5x3)	4 V	Adjustable	1
MONOLITHIC POWER SYSTEMS (MPS) MPQ4415MGQB-Z	Buck	13-PowerVQFN	-40 °C	125 ¯C	0.8 V		Positive	1.5 A	Step-Down		36 V	2.2 MHz	Surface Mount	13-QFN (2.5x3)	4 V	Adjustable	1
MONOLITHIC POWER SYSTEMS (MPS) MPQ4415AGQB-Z	Buck	13-PowerVQFN	-40 °C	125 ¯C	0.8 V	AEC-Q100	Positive	1.5 A	Step-Down	Automotive	36 V	2.2 MHz	Surface Mount	13-QFN (2.5x3)	4 V	Adjustable	1
MONOLITHIC POWER SYSTEMS (MPS) MPQ4415AGQB-AEC1-P	Buck	13-PowerVQFN	-40 °C	125 ¯C	0.8 V	AEC-Q100	Positive	1.5 A	Step-Down	Automotive	36 V	2.2 MHz	Surface Mount Wettable Flank	13-QFN (2.5x3)	4 V	Adjustable	1
MONOLITHIC POWER SYSTEMS (MPS) EV4415M-QB-00A								1.5 A				2.2 MHz						3.3 V	Fully Populated	4 V	36 V	1 Non-Isolated Output Non-Isolated	1	Board(s)	Buck	Board(s)	DC/DC Step Down	MP4415M MPQ4415M
MONOLITHIC POWER SYSTEMS (MPS) MPQ4415MGQB-AEC1-Z	Buck	13-PowerVQFN	-40 °C	125 ¯C	0.8 V	AEC-Q100	Positive	1.5 A	Step-Down	Automotive	36 V	2.2 MHz	Surface Mount	13-QFN (2.5x3)	4 V	Adjustable	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 1.95
		1000	$ 1.89
		1500	$ 1.86
		2500	$ 1.83
		3500	$ 1.82
		5000	$ 1.80

Description

General part information

MPQ4415 Series

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1.5A 13-PowerVQFN
