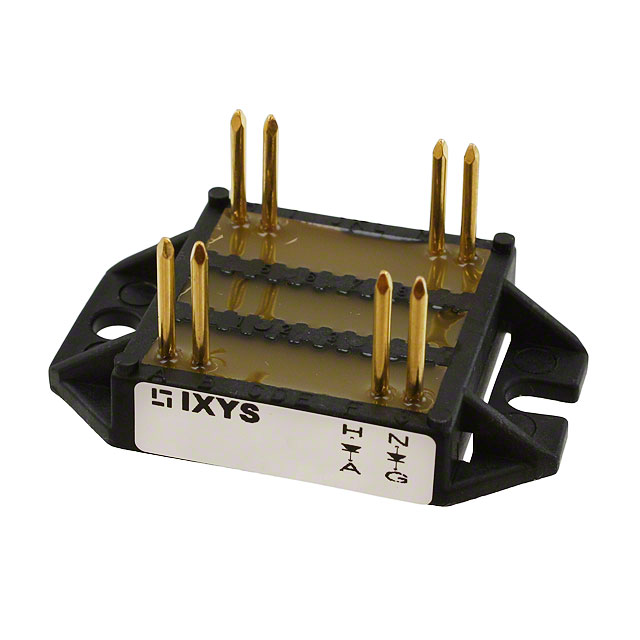

DSEI2X61-06P

Active

IXYS

DIODE MOD GP 600V 60A ECO-PAC1

Search across all available documentation for this part.

Active

IXYS

DIODE MOD GP 600V 60A ECO-PAC1

Technical Specifications

Parameters and characteristics for this part

Specification	DSEI2X61-06P

Current - Average Rectified (Io) (per Diode)	60 A
Current - Reverse Leakage @ Vr	200 µA
Diode Configuration	2 Independent
Mounting Type	Chassis Mount
Package / Case	ECO-PAC1
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	ECO-PAC1
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.8 V

Part	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Reverse Recovery Time (trr)
IXYS DSEI2X61-12B	SOT-227-4 miniBLOC	150 °C	-40 °C	2.2 mA	1.2 kV	Chassis Mount	SOT-227B	Standard	2.5 V	200 mA 500 ns	52 A	2 Independent	60 ns
IXYS DSEI2X61-10B	SOT-227-4 miniBLOC	150 °C	-40 °C	3 mA	1000 V	Chassis Mount	SOT-227B	Standard	2.3 V	200 mA 500 ns	60 A	2 Independent	50 ns
IXYS DSEI2X61-06P	ECO-PAC1			200 µA	600 V	Chassis Mount	ECO-PAC1	Standard	1.8 V	200 mA 500 ns	60 A	2 Independent	50 ns
IXYS DSEI2X61-12P	ECO-PAC1	150 °C	-40 °C	2.2 mA	1.2 kV	Chassis Mount	ECO-PAC1	Standard	2.5 V	200 mA 500 ns	52 A	2 Independent	60 ns
IXYS DSEI2X61-04C	SOT-227-4 miniBLOC	150 °C	-40 °C	200 µA	400 V	Chassis Mount	SOT-227B	Standard	1.8 V	200 mA 500 ns	60 A	2 Independent	50 ns
IXYS DSEI2X61-06C	SOT-227-4 miniBLOC	150 °C	-40 °C	200 µA	600 V	Chassis Mount	SOT-227B	Standard	1.8 V	200 mA 500 ns	60 A	2 Independent	50 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.34

General part information

Diode Array 2 Independent 600 V 60A Chassis Mount ECO-PAC1

Technical documentation and resources

No documents available
