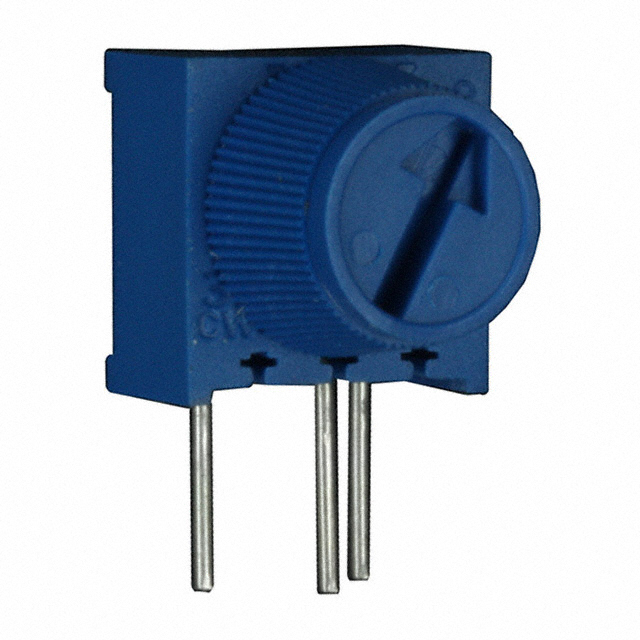

3386X-1-104TLF

Active

Bourns Inc.

TRIMMER 100KOHM 0.5W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3386X-1-104TLF

Active

Bourns Inc.

TRIMMER 100KOHM 0.5W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3386X-1-104TLF

Adjustment Type	Side Finger Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	100 kOhms
Resistive Material	Cermet
Size / Dimension [x]	0.375 in
Size / Dimension [x]	9.53 mm
Size / Dimension [y]	0.375 in
Size / Dimension [y]	9.53 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3386X Series

Part	Tolerance	Number of Turns	Termination Style	Temperature Coefficient	Mounting Type	Resistive Material	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Adjustment Type
Bourns Inc. 3386X-1-104LF	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	100 kOhms	Side Adjustment
Bourns Inc. 3386X-1-104TLF	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	100 kOhms	Side Finger Adjustment
Bourns Inc. 3386X-1-471LF	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	470 Ohms	Side Adjustment
Bourns Inc. 3386X-1-155T	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	1.5 MOhms	Side Finger Adjustment
Bourns Inc. 3386X-DF6-504	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm		Side Adjustment
Bourns Inc. 3386X-1-500	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	50 Ohms	Side Adjustment
Bourns Inc. 3386X-DF6-201	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	200 Ohms	Side Adjustment
Bourns Inc. 3386X-1-505	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	5 MOhms	Side Adjustment
Bourns Inc. 3386X-1-203	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	20 kOhms	Side Adjustment
Bourns Inc. 3386X-1-105	10 %	1	PC Pins	100 ppm/°C	Through Hole	Cermet	0.5 W	0.5 W	0.375 in	0.375 in	9.53 mm	9.53 mm	1 MOhms	Side Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.71
		10	$ 2.18
		25	$ 2.00
		50	$ 1.87
		100	$ 1.75
		250	$ 1.60
		500	$ 1.49
		1000	$ 1.40
		5000	$ 1.19

Description

General part information

3386X Series

100 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Finger Adjustment
