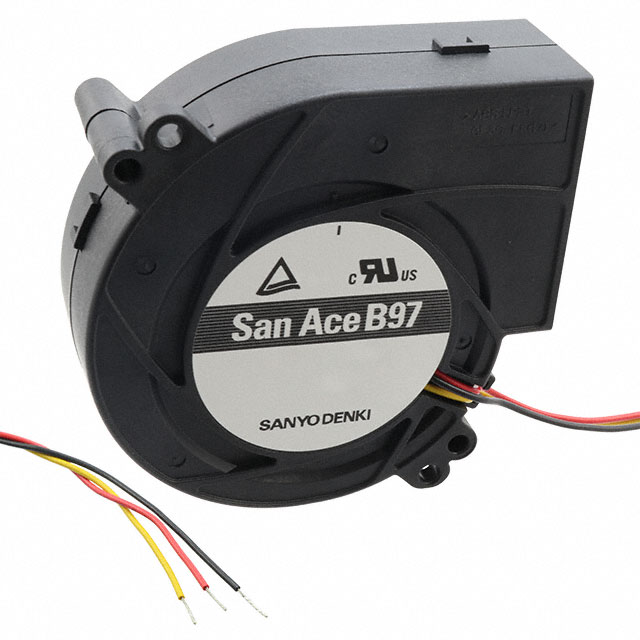

9BMB12K201

Active

Sanyo Denki America Inc.

FAN BLOWER 97.1X33MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

9BMB12K201

Active

Sanyo Denki America Inc.

FAN BLOWER 97.1X33MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9BMB12K201

Air Flow	56.8 CFM
Air Flow	1.59 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	3.4 A
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	40.8 W
RPM	6850 RPM
Size / Dimension [x]	97.1 mm
Size / Dimension [z]	95 mm
Static Pressure	5.14 in H2O
Static Pressure	1280 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.419 lb
Weight	190.06 g
Width [y]	33 mm

9BMB12 Series

Part	Approval Agency	Voltage - Rated	RPM	Material - Frame	Weight	Weight	Current Rating (Amps)	Air Flow	Air Flow	Width [y]	Material - Blade	Power (Watts)	Lifetime @ Temp.	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Bearing Type	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features
Sanyo Denki America Inc. 9BMB12F202	cURus TUV	12 VDC	4500 RPM	Plastic	0.419 lb	190.06 g	900 mA	36.7 CFM	1.03 m³/min	33 mm	Plastic	10.8 W	40000 Hrs	Blower	7 V	13.8 VDC	95 mm	97.1 mm	1.647 in H2O	410 Pa	Ball	56 dB	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads
Sanyo Denki America Inc. 9BMB12G201	cURus TUV	12 VDC	5750 RPM	Plastic	0.419 lb	190.06 g	1.8 A			33 mm	Plastic	21.6 W	40000 Hrs	Blower	7 V	13.8 VDC	95 mm	97.1 mm	3.052 in H2O	760 Pa	Ball	61 dB(A)	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9BMB12P2H01	cURus TUV	12 VDC	4850 RPM	Plastic	0.419 lb	190.06 g	1.1 A	39.2 CFM	1.1 m³/min	33 mm	Plastic	13.2 W	40000 Hrs	Blower	10.2 VDC	13.8 VDC	95 mm	97.1 mm	1.968 in H2O	490 Pa	Ball	57 dB	-20 °C	70 °C	-20 C	70 °C	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9BMB12H201	cURus TUV	12 VDC	4850 RPM	Plastic	0.419 lb	190.06 g	1.1 A	39.2 CFM	1.1 m³/min	33 mm	Plastic	13.2 W	40000 Hrs	Blower	7 V	13.8 VDC	95 mm	97.1 mm	1.968 in H2O	490 Pa	Ball	57 dB	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9BMB12K201	cURus TUV	12 VDC	6850 RPM	Plastic	0.419 lb	190.06 g	3.4 A	56.8 CFM	1.59 mł/min	33 mm	Plastic	40.8 W	40000 Hrs	Blower	7 V	13.2 VDC	95 mm	97.1 mm	5.14 in H2O	1280 Pa	Ball		-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9BMB12G2D01	cURus TUV	12 VDC	5750 RPM	Plastic	0.419 lb	190.06 g	1.8 A	47.3 CFM	1.32 m³/min	33 mm	Plastic	21.6 W	40000 Hrs	Blower	7 V	13.8 VDC	95 mm	97.1 mm	3.052 in H2O	760 Pa	Ball	61 dB(A)	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 9BMB12H202	cURus TUV	12 VDC	4850 RPM	Plastic	0.419 lb	190.06 g	1.1 A	39.2 CFM	1.1 m³/min	33 mm	Plastic	13.2 W	40000 Hrs	Blower	7 V	13.8 VDC	95 mm	97.1 mm	1.968 in H2O	490 Pa	Ball	57 dB	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.28
		10	$ 28.57
		32	$ 27.49
		64	$ 25.68
		128	$ 23.69
		256	$ 23.33

Description

General part information

9BMB12 Series

Fan Blower 12VDC Rectangular/Rounded - 97.1mm L x 95mm H Ball 56.8 CFM (1.59mł/min) 3 Wire Leads
