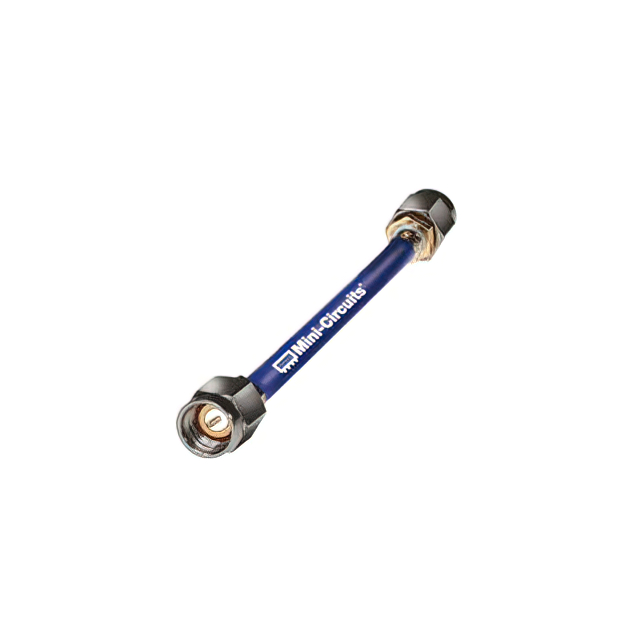

141-36SM+
ActiveMINI-CIRCUITS
CBL ASSY SMA PLUG TO PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
141-36SM+
ActiveMINI-CIRCUITS
CBL ASSY SMA PLUG TO PLUG 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 141-36SM+ |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable .141 |
| Color | Blue |
| Frequency - Max [Max] | 18 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 33.31 | |
| 10 | $ 33.16 | |||
| 25 | $ 32.82 | |||
| 50 | $ 32.48 | |||
| 100 | $ 32.46 | |||
Description
General part information
141-36 Series
Cable Assembly Coaxial SMA to SMA Hand Formable .141 36.00" (914.40mm)
