PS7221A-2A-F3-A
ObsoleteCEL
SSR RELAY SPST-NO 170MA 0-260V
Deep-Dive with AI
Search across all available documentation for this part.
PS7221A-2A-F3-A
ObsoleteCEL
SSR RELAY SPST-NO 170MA 0-260V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PS7221A-2A-F3-A |
|---|---|
| Approval Agency | BSI, UL |
| Circuit | SPST-NO (1 Form A) x 2 |
| Load Current | 170 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 10 Ohms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 8-SOP |
| Package / Case [custom] | 4.4 mm |
| Package / Case [x] | 0.173 in |
| Supplier Device Package | 8-SOP (2.54mm) |
| Termination Style | Gull Wing |
| Voltage - Input | 1.2 VDC |
| Voltage - Load [Max] | 260 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PS7221 Series

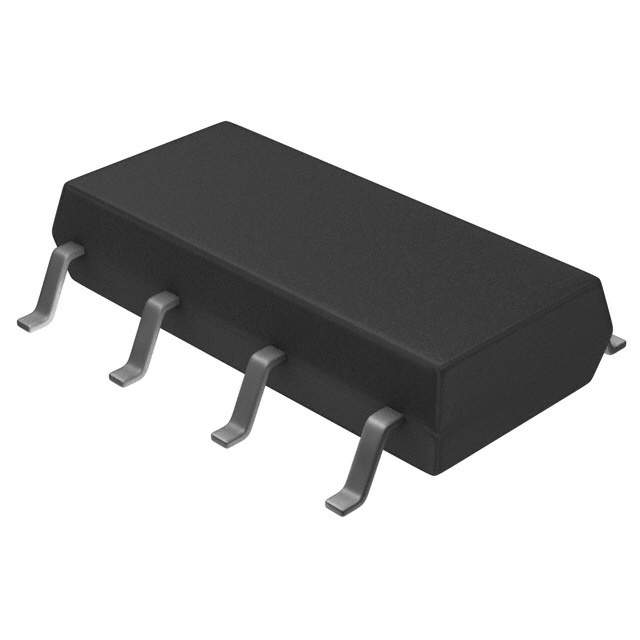

Solid State SPST-NO (1 Form A) x 2 8-SOP (0.173", 4.40mm Width)
