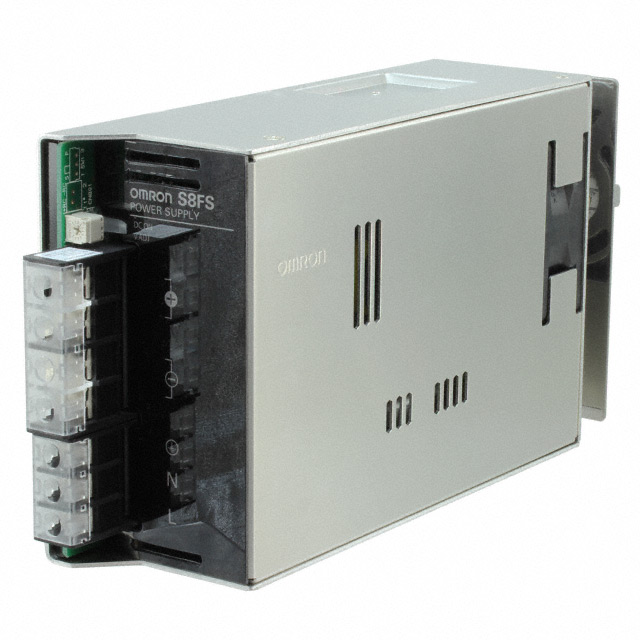

S8FS-G60024CD

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 600W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 600W

Technical Specifications

Parameters and characteristics for this part

Specification	S8FS-G60024CD

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, TUV, UL, CE
Efficiency	90 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	600 W
Size / Dimension [x]	7.48 "
Size / Dimension [x]	170 mm
Size / Dimension [y]	42.2 mm
Size / Dimension [y]	1.66 "
Size / Dimension [z]	4.02 "
Size / Dimension [z]	102 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Efficiency	Approval Agency	Mounting Type	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Type	Number of Outputs	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type
Omron Electronics Inc-EMC Div S8FS-G60015C	88 %	CE cURus TUV UL	Chassis Mount	40 A	-20 °C	70 °C	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	Industrial ITE (Commercial)	Enclosed	1	600 W	61 mm	7.48 "	2.4 in	4.72 in	190 mm	120 mm	Adjustable Output Universal Input	15 V
Omron Electronics Inc-EMC Div S8FS-G60012C	88 %	CE CSA cUR UL	Chassis Mount	50 A	-20 °C	70 °C	3000 V			Industrial ITE (Commercial)	Enclosed	1	600 W	61 mm	7.48 "	2.4 in	4.72 in	190 mm	120 mm	Adjustable Output DC Input Capable Universal Input	12 V
Omron Electronics Inc-EMC Div S8FS-G60024CD	90 %	CE cURus TUV UL			-20 °C	70 °C	3000 V			ITE (Commercial)		1	600 W	102 mm	7.48 "	4.02 "	1.66 "	170 mm	42.2 mm	Adjustable Output PFC Universal Input	24 V	85 VAC	264 VAC	AC
Omron Electronics Inc-EMC Div S8FS-G60024C-W	90 %	CE cURus TUV UL	Chassis Mount	27 A	-20 °C	70 °C	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	Industrial ITE (Commercial)	Enclosed	1	648 W	61 mm	7.48 "	2.4 in	4.72 in	190 mm	120 mm	Adjustable Output Universal Input	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 600W
