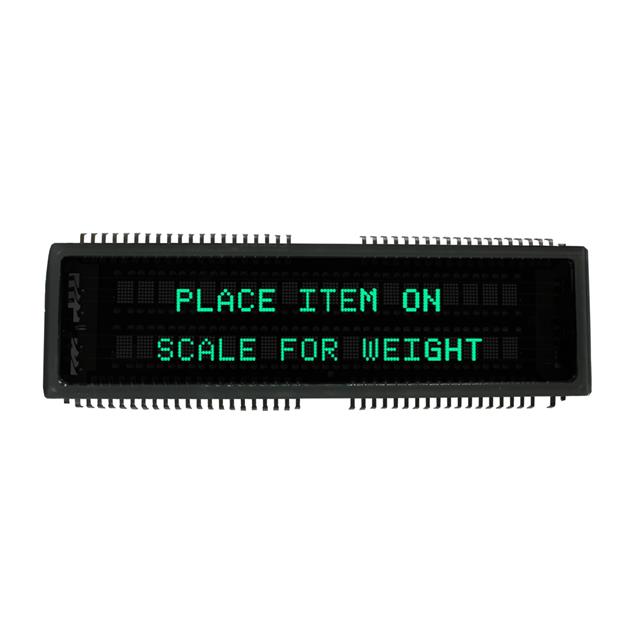

D0220SD-35-4002FN
ActiveNewhaven Display Intl
DISPLAY VFD DOT MAT 2X20 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D0220SD-35-4002FN
ActiveNewhaven Display Intl
DISPLAY VFD DOT MAT 2X20 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D0220SD-35-4002FN |
|---|---|
| Character Size [x] | 3.5 mm |
| Character Size [y] | 5 mm |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 125 mm |
| Outline L x W x H [y] | 35 mm |
| Outline L x W x H [z] | 7.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 18.10 | |
Description
General part information
D0220SD Series
Vacuum Fluorescent Display (VFD) 20 x 2 Character 125.00mm x 35.00mm x 7.80mm
