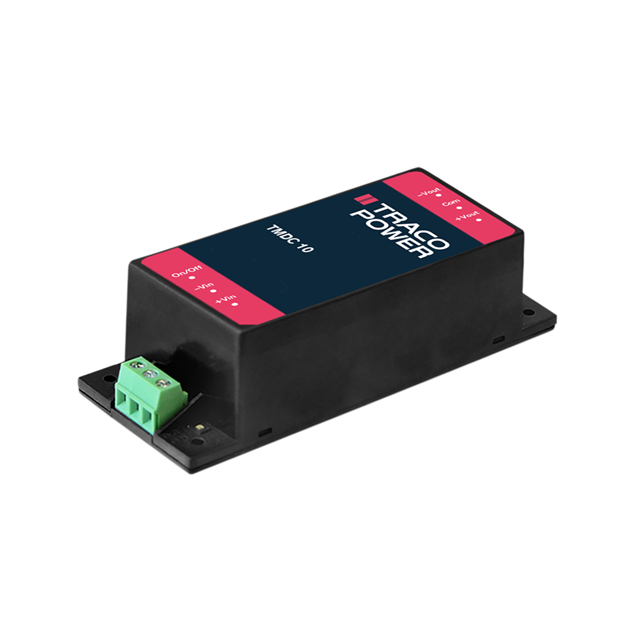

TMDC 10-2413

Active

Traco Power

DC/DC CONVERTER 15V 10W

Search across all available documentation for this part.

Active

Traco Power

DC/DC CONVERTER 15V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Voltage - Output 2	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Applications	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)
Traco Power TMDC 10-7222H	Enclosed	Chassis Mount	-12 V	80 V	10 W	160 V	416 mA	85 %	3000 V	2	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in	CB CE cURus	ITE (Commercial)	12 V	-40 °C	70 °C
Traco Power TMDC 10-2418	Enclosed	Chassis Mount		9 V	10 W	36 V	208 mA	84 %	3000 V	1	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in	CB CE cURus	ITE (Commercial)	48 V	-40 °C	92.5 °C
Traco Power TMDC 10-2422	Enclosed	Chassis Mount	-12 V	9 V	10 W	36 V	416 mA	86 %	3000 V	2	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in	CB CE cURus	ITE (Commercial)	12 V	-40 °C	92.5 °C
Traco Power TMDC 10-4815	Enclosed	Chassis Mount		18 V	10 W	75 V	416 mA	86 %	3000 V	1	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in	CB CE cURus	ITE (Commercial)	24 V	-40 °C	92.5 °C
Traco Power TMDC 10-2413	Enclosed	Chassis Mount		9 V	10 W	36 V	666 mA	86 %	3000 V	1	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in	CB CE cURus	ITE (Commercial)	15 V	-40 °C	92.5 °C
Traco Power TMDC 10-7225H	Enclosed	Chassis Mount	-24 V	80 V	10 W	160 V		84 %	3000 V	2	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in	CB CE cURus	ITE (Commercial)	24 V	-40 °C	70 °C	208 mA	208 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 50.49

General part information

Enclosed DC DC Converter 1 Output 15V 666mA 36V Input
