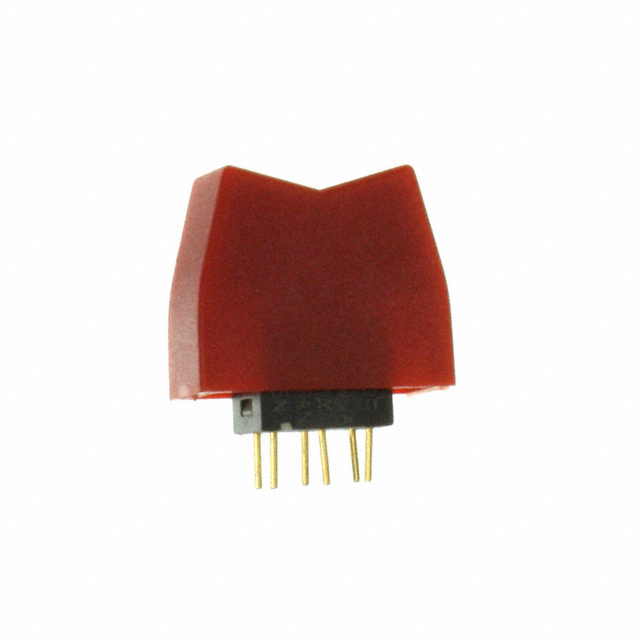

G28KP-YC
ActiveNKK Switches
SWITCH ROCKER DPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G28KP-YC
ActiveNKK Switches
SWITCH ROCKER DPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G28KP-YC |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | CSA, UL |
| Circuit | DPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Process Sealed |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Mom-Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.04 | |
| 10 | $ 8.14 | |||
| 25 | $ 7.80 | |||
| 40 | $ 7.42 | |||
| 80 | $ 7.12 | |||
| 230 | $ 6.69 | |||
| 440 | $ 6.18 | |||
| 945 | $ 5.97 | |||
Description
General part information
G28KP Series
Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole
