2010-7511-000

Active

Radiall USA, Inc.

SMB M RA BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB M RA BHD

Technical Specifications

Parameters and characteristics for this part

Specification	2010-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Material	Body Material	Contact Termination	Connector Type	Shield Termination	Number of Ports	Fastening Type	Center Contact Plating	Housing Color	Dielectric Material	Connector Style	Mating Cycles	Body Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Frequency - Max [Max]
Radiall USA, Inc. 2010-7511-000	Brass	Brass	Solder	Jack Male Pin	Solder	1	Snap-On	Gold	Silver	Polytetrafluoroethylene (PTFE)	SMB	500	Nickel	Through Hole Right Angle	-65 ░C	165 °C	50 Ohms	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

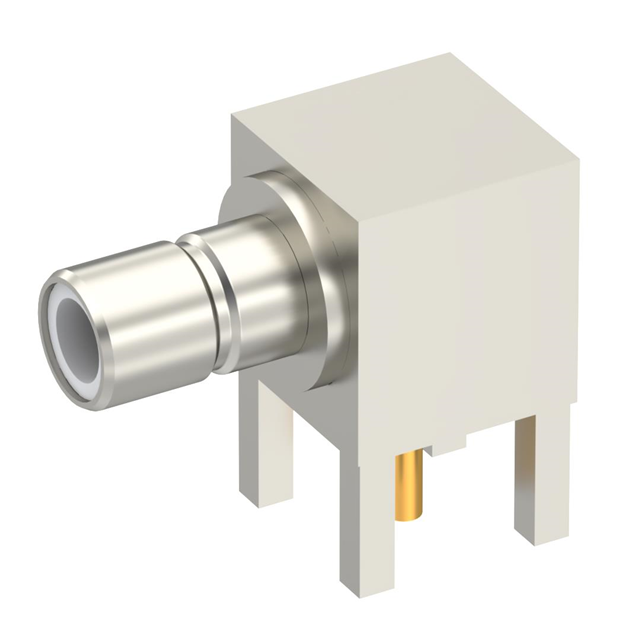

SMB Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
