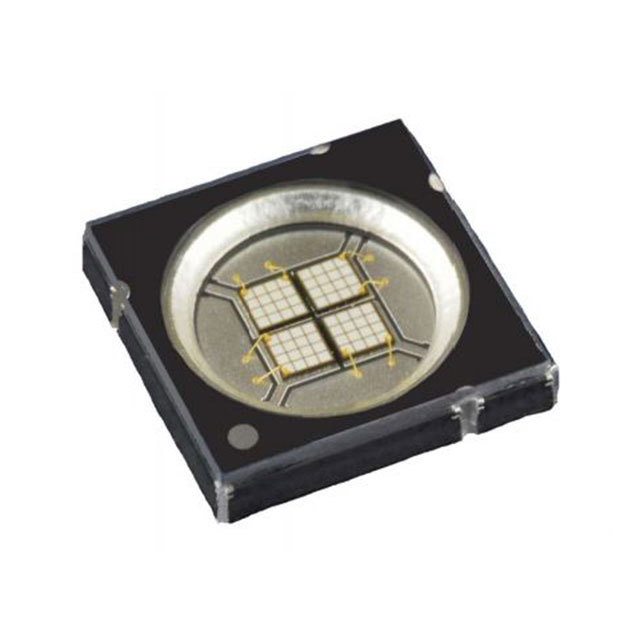

LZ4-04UV0R-0000

Obsolete

ams-OSRAM USA INC.

EMITTER UV

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EMITTER UV

Technical Specifications

Parameters and characteristics for this part

Specification	LZ4-04UV0R-0000

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature	130 °C
Orientation	Top View
Radiant Intensity (Ie) Min @ If [Min]	3800 mW/sr
Type	Ultraviolet (UV)
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	15.2 V
Wavelength	368 nm

Part	Viewing Angle	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Supplier Device Package	Wavelength	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Current - Max	Color	Current - DC Forward (If) (Max)	Orientation	Type	Operating Temperature	Voltage - Forward (Vf) (Typ)	Radiant Intensity (Ie) Min @ If [Min]
ams-OSRAM USA INC. LZ4-04MDCB-0000	110 °	3.3 V	3.7 V	2.5 V	3.3 V	133 lm	82 lm	24 lm	183 lm	SMD	457 nm 525 nm 624 nm 6500 K	7 mm	0.276 in	0.276 "	7 mm	10 lm/W	51 lm/W	47 lm/W	79 lm/W	0.7 °C/W	1.65 mm	0.065 "	Surface Mount	1A Blue 1A Green 1A Red 1A White	Blue Green Red White
ams-OSRAM USA INC. LZ4-04UV0R-0000	110 °										368 nm												Surface Mount			1 A	Top View	Ultraviolet (UV)	130 °C	15.2 V	3800 mW/sr

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ultraviolet (UV) Emitter 368nm (365nm ~ 370nm) 15.2V 1A 3800mW/sr @ 700mA 110° 2828 (7070 Metric)
