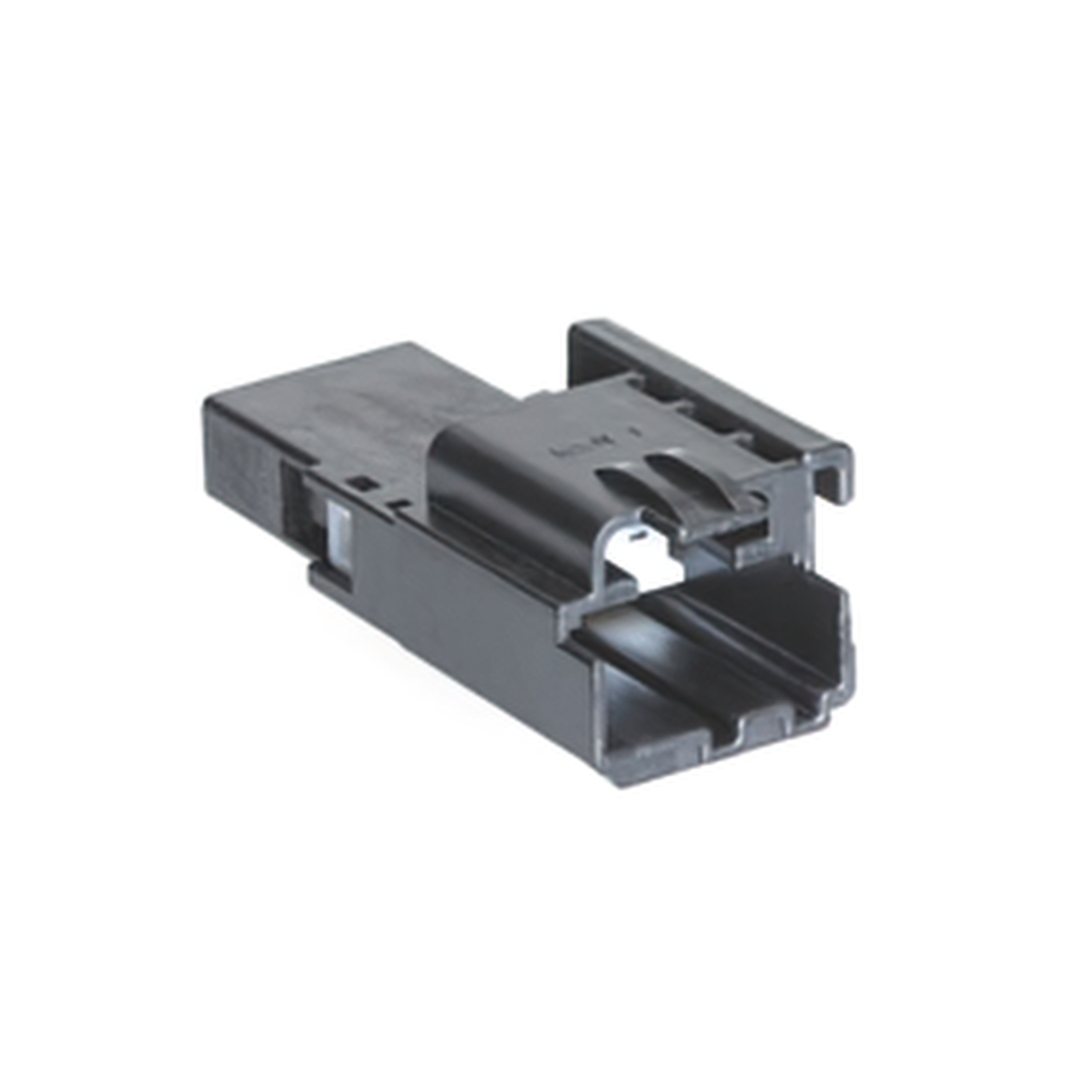

0310731071

Active

Molex

CONN HDR HSG 6POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN HDR HSG 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Fastening Type	Number of Rows	Color	Number of Positions	Mounting Type	Note	Contact Termination	Pitch [x]	Pitch [x]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type
Molex 0310731041	Male Pin	Latch Holder	1	Gray	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	2.54 mm	0.1 in	Terminal Position Lock (TPA)	105 ░C	-55 °C	Header
Molex 0310731010	Female Socket	Latch Lock	1	Black	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	2.54 mm	0.1 in	Terminal Position Lock (TPA)	100 °C	-40 °C	Receptacle
Molex 0310731012	Female Socket	Latch Lock	1	Brown	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	2.54 mm	0.1 in	Terminal Position Lock (TPA)	100 °C	-40 °C	Receptacle
Molex 0310731011	Female Socket	Latch Lock	1	Gray	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	2.54 mm	0.1 in	Terminal Position Lock (TPA)	100 °C	-40 °C	Receptacle
Molex 0310731071	Male Pin	Latch Holder	1	Gray	6	Bracket Mount	Contacts Not Included	Crimp	2.54 mm	0.1 in	Terminal Position Lock (TPA)	105 ░C	-55 °C	Header
Molex 0310731070	Male Pin	Latch Holder	1	Black	6	Bracket Mount	Contacts Not Included	Crimp	2.54 mm	0.1 in	Terminal Position Lock (TPA)	100 °C	-40 °C	Header
Molex 0310731040	Male Pin	Latch Holder	1	Black	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	2.54 mm	0.1 in	Terminal Position Lock (TPA)	105 ░C	-55 °C	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.62

General part information

6 Rectangular Connectors - Housings Header Gray 0.100" (2.54mm)
