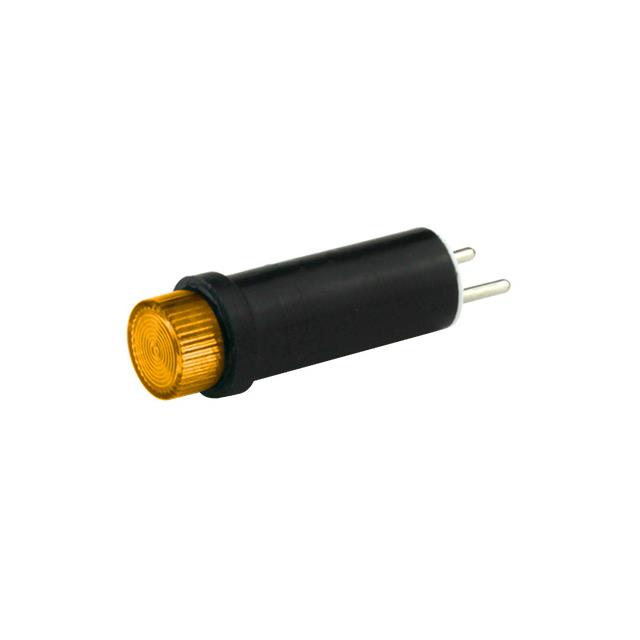

91-BA12H-NAO-R-
ActiveVisual Communications Company - VCC
LED PMI .290 AMBER 12V
Deep-Dive with AI
Search across all available documentation for this part.
91-BA12H-NAO-R-
ActiveVisual Communications Company - VCC
LED PMI .290 AMBER 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 91-BA12H-NAO-R- |
|---|---|
| Current | 25 mA |
| Lamp Color | Amber |
| Lens Color | Amber |
| Lens Size [diameter] | 7.1 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 16 mcd |
| Panel Cutout Dimensions [x] | 7.37 mm |
| Panel Cutout Dimensions [x] | 0.29 in |
| Panel Cutout Shape | Round |
| Termination Style | 0.201 in |
| Termination Style | Wire Wrap |
| Termination Style | 5.1 mm |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 V |
| Wavelength - Peak | 583 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 4.73 | |
Description
General part information
91-BA12H Series
LED Panel Indicator Amber Diffused 60° 12V 25mA Wire Wrap, 0.201" (5.1mm)
Documents
Technical documentation and resources
No documents available
