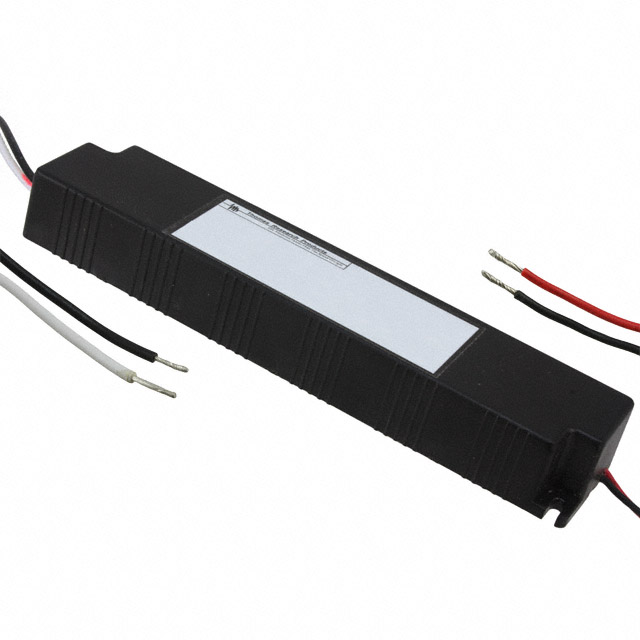

LED50W-029
ActiveThomas Research Products
LED DRIVER CV AC/DC 29V 1.75A
Deep-Dive with AI
Search across all available documentation for this part.
LED50W-029
ActiveThomas Research Products
LED DRIVER CV AC/DC 29V 1.75A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LED50W-029 |
|---|---|
| Approval Agency | cULus, CE |
| Current - Output (Max) [Max] | 1.75 A |
| Efficiency | 87 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 50 W |
| Ratings | IP66 |
| Size / Dimension [x] | 194 mm |
| Size / Dimension [x] | 7.64 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.69 in |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Output | 29 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 68.33 | |
Description
General part information
LED50W Series
1.75A 29V Constant Voltage LED Driver AC DC Converter Topology 1 Output
