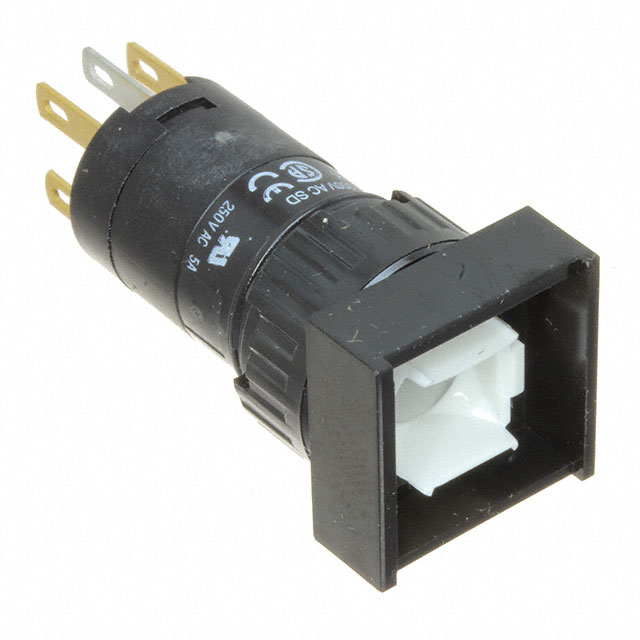

31-151.022

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	31-151.022

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	250 V

Part	Switch Function	Circuit	Actuator Type	Mounting Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Termination Style	Termination Style	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Mechanical Life
EAO 31-151.012
EAO 31-151.022	Off-Mom On-Mom	DPST-NO/NC	Square Button (Not Included)	Panel Mount Front	No Marking	16 mm	55 °C	-25 °C	IP40	Standard	0.11 in	Quick Connect Solder	2.8 mm	250 V	5 A	2000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
