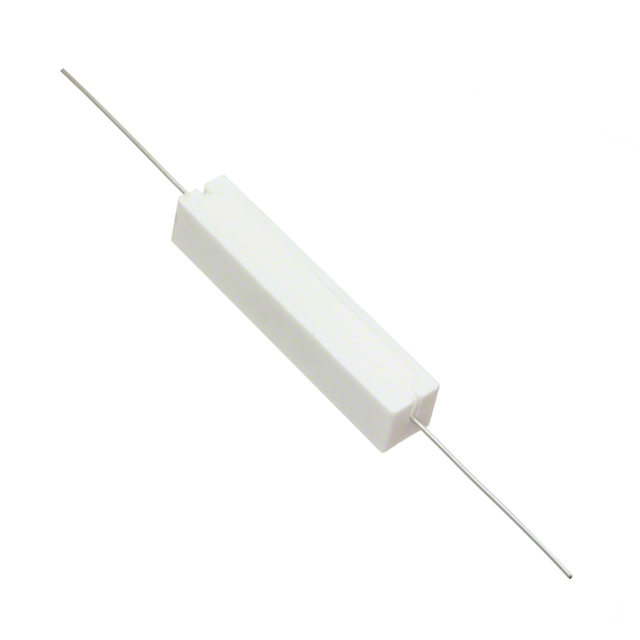

SQPR547KJ
ActiveTE Connectivity Passive Product
RES 47K OHM 5% 5W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
SQPR547KJ
ActiveTE Connectivity Passive Product
RES 47K OHM 5% 5W AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQPR547KJ |
|---|---|
| Composition | Metal Film |
| Features | Safety, Flame Proof, Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 5 W |
| Resistance | 47 kOhms |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 inches |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Size / Dimension [z] | 0.866 " |
| Size / Dimension [z] | 22 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.19 | |||
| 320 | $ 0.17 | |||
| 640 | $ 0.14 | |||
Description
General part information
SQPR5 Series
47 kOhms ±5% 5W Through Hole Resistor Axial Flame Proof, Moisture Resistant, Safety Metal Film
