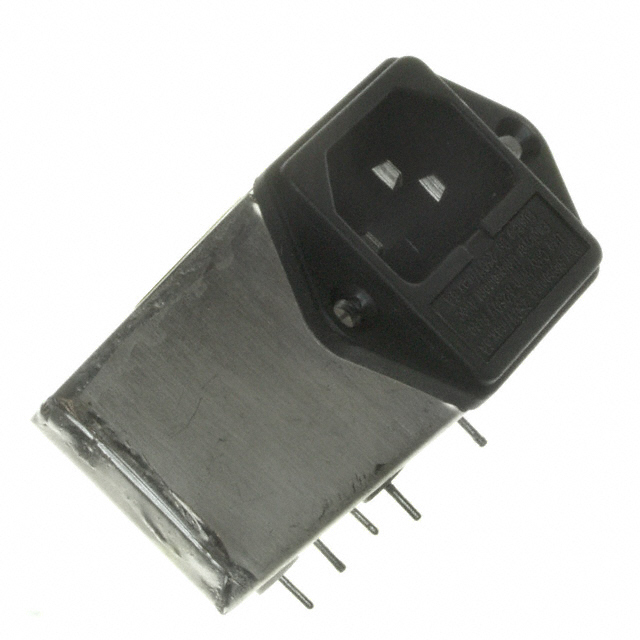

F2600FP06

Active

Curtis Industries

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Curtis Industries

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	F2600FP06

Accomodates a Fuse	True
Approval Agency	CSA, CE, UL, TUV
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness	0.197 in
Panel Thickness	5 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Panel Thickness	Panel Thickness	Mounting Type	Connector Type	Current Rating - Appliance Inlet	Current Rating - Filter	Connector Style	Approval Agency	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Accomodates a Fuse	Termination	Panel Cutout Dimensions	Features
Curtis Industries F2600FP06	Filtered (EMI RFI) - Commercial	0.197 in	5 mm	Panel Mount Flange Through Hole Right Angle	Receptacle Male Blades - Module	6 A	6 A	IEC 320-C14	CE CSA TUV UL	250 VAC	Fuse Holder		Solder
Curtis Industries F2600FA06	Filtered (EMI RFI) - Commercial			Flange Panel Mount	Receptacle Male Blades - Module	6 A	6 A	IEC 320-C14	CE CSA TUV UL	250 VAC	Fuse Holder		Quick Connect	Variable Size	Front or Rear Side Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 33.00

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
