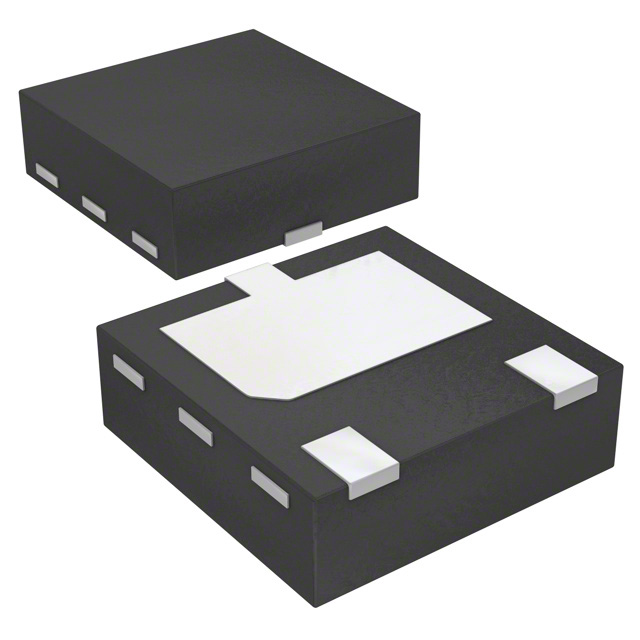

2SAR542F3TR - HUML2020L3

2SAR542F3TR

Active
Rohm Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR, 3A I(C), 30V V(BR)CEO, 1-ELEMENT, PNP, SILICON, ROHS COMPLIANT, HUML2020L3, 3 PIN

Deep-Dive with AI

Search across all available documentation for this part.

2SAR542F3TR - HUML2020L3

2SAR542F3TR

Active
Rohm Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR, 3A I(C), 30V V(BR)CEO, 1-ELEMENT, PNP, SILICON, ROHS COMPLIANT, HUML2020L3, 3 PIN

Technical Specifications

Parameters and characteristics for this part

Specification2SAR542F3TR
Current - Collector (Ic) (Max) [Max]3 A
Current - Collector Cutoff (Max) [Max]100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]200
Frequency - Transition240 MHz
Mounting TypeSurface Mount
Operating Temperature150 °C
Package / Case3-UDFN Exposed Pad
Power - Max [Max]2.1 W
Supplier Device PackageHUML2020L3
Transistor TypePNP
Vce Saturation (Max) @ Ib, Ic200 mV
Voltage - Collector Emitter Breakdown (Max) [Max]30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.85
10$ 0.53
100$ 0.34
500$ 0.26
1000$ 0.23
Digi-Reel® 1$ 0.85
10$ 0.53
100$ 0.34
500$ 0.26
1000$ 0.23
Tape & Reel (TR) 3000$ 0.20
6000$ 0.19
9000$ 0.18
15000$ 0.17
21000$ 0.16
30000$ 0.16

Description

General part information

2SAR542PFRA Series

Various products are available in lineup developed focusing on energy-saving and high reliability as main concepts, covering from ultra-compact packages to power-packages to meet the needs in market.
