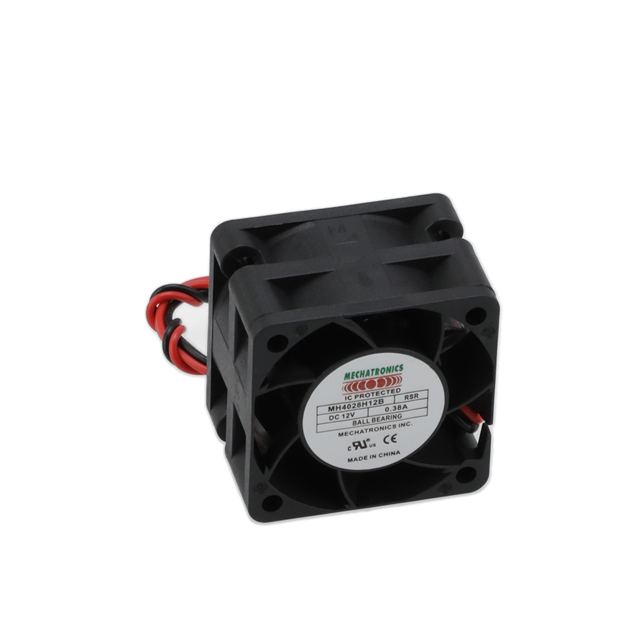

MH4028H12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet

MH4028H12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MH4028H12B-RSR

Air Flow	21.1 CFM
Air Flow	0.591 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.35 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Auto Restart
Material - Blade	Plastic
Material - Frame	Plastic
Noise	52 dB
RPM	13000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.88 in H2O
Static Pressure	219.2 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	0.089 lb
Weight	40.37 g
Width [y]	28 mm

MH4028 Series

Part	Material - Frame	Voltage - Rated	Air Flow	Air Flow	Fan Type	RPM	Noise	Current Rating (Amps)	Material - Blade	Static Pressure	Static Pressure	Width [y]	Weight	Weight	Termination	Features	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type
Mechatronics Bearing Group MH4028H12B-RSR	Plastic	12 VDC	21.1 CFM	0.591 m³/min	Tubeaxial	13000 RPM	52 dB	0.35 A	Plastic	0.88 in H2O	219.2 Pa	28 mm	0.089 lb	40.37 g	2 Wire Leads	Auto Restart Thermal Overload Protector (TOP)	40 mm	Square	40 mm	Ball
Mechatronics Bearing Group MH4028H24B1+6-RSR	Plastic	24 VDC	21.1 CFM	0.591 m³/min	Tubeaxial	13000 RPM	52 dB	150 mA	Plastic	0.88 in H2O	219.2 Pa	28 mm	0.089 lb	40.37 g	4 Wire Leads	Auto Restart PWM Control Speed Sensor (Tach)	40 mm	Square	40 mm	Ball
Mechatronics Bearing Group MH4028H12B1+6-RSR-PC	Plastic	12 VDC	21.1 CFM	0.591 m³/min	Tubeaxial	13000 RPM	52 dB	0.35 A	Plastic	0.88 in H2O	219.2 Pa	28 mm	0.089 lb	40.37 g	4 Wire Leads	Auto Restart Paraylene Coating PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	40 mm	Square	40 mm	Ball
Mechatronics Bearing Group MH4028L12B-RSR	Plastic	12 VDC	12.8 CFM	0.359 m³/min	Tubeaxial	8000 RPM	39 dB(A)	120 mA	Plastic	0.33 in H2O	82.2 Pa	28 mm	0.089 lb	40.37 g	2 Wire Leads	Auto Restart Thermal Overload Protector (TOP)	40 mm	Square	40 mm	Ball
Mechatronics Bearing Group MH4028H12B1+6-RSR	Plastic	12 VDC	21.1 CFM	0.591 m³/min	Tubeaxial	13000 RPM	52 dB	0.35 A	Plastic	0.88 in H2O	219.2 Pa	28 mm	0.089 lb	40.37 g	4 Wire Leads	Auto Restart PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	40 mm	Square	40 mm	Ball
Mechatronics Bearing Group MH4028H24B-RSR	Plastic	24 VDC	21.1 CFM	0.591 m³/min	Tubeaxial	13000 RPM	52 dB	150 mA	Plastic	0.88 in H2O	219.2 Pa	28 mm	0.089 lb	40.37 g	2 Wire Leads	Auto Restart Thermal Overload Protector (TOP)	40 mm	Square	40 mm	Ball
Mechatronics Bearing Group MH4028X12B1+6-RSR	Plastic	12 VDC	25.2 CFM	0.706 mł/min	Tubeaxial	16500 RPM	63 dB	600 mA	Plastic	1.325 in H2O	330 Pa	28 mm	0.089 lb	40.37 g	4 Wire Leads	Auto Restart PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	40 mm	Square	40 mm	Ball
Mechatronics Bearing Group MH4028H24B1+6-RSR-PC	Plastic	24 VDC	21.1 CFM	0.591 m³/min	Tubeaxial	13000 RPM	52 dB	150 mA	Plastic	0.88 in H2O	219.2 Pa	28 mm	0.089 lb	40.37 g	4 Wire Leads	Auto Restart Parylene Coating PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	40 mm	Square	40 mm	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.27
		10	$ 10.94
		25	$ 10.45
		50	$ 10.10
		100	$ 9.75
		250	$ 9.32
		500	$ 9.00

Description

General part information

MH4028 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 21.1 CFM (0.591m³/min) 2 Wire Leads
