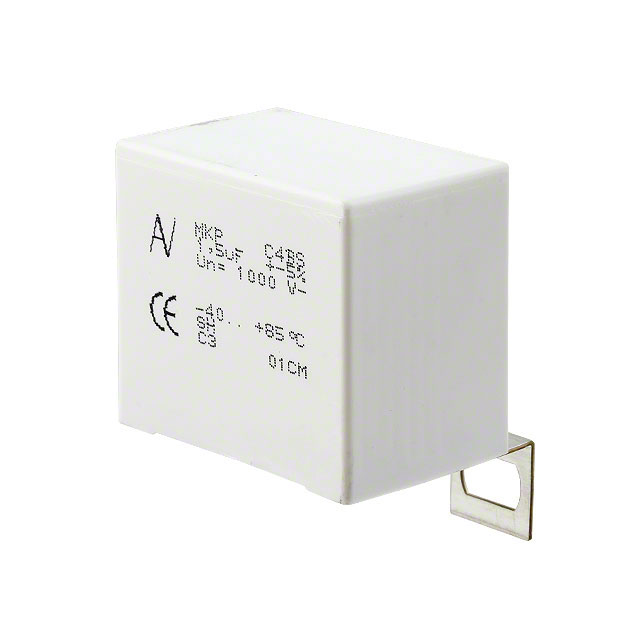

C4BSNBX4150ZAJJ

Active

KEMET

CAP, 1.5ΜF, 600VAC, 5%, PP, RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Film Capacitors Catalog Datasheet +4

C4BSNBX4150ZAJJ

Active

KEMET

CAP, 1.5ΜF, 600VAC, 5%, PP, RADIAL

Deep-Dive with AI

DocumentsPower Film Capacitors Catalog Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4BSNBX4150ZAJJ

Applications	DC Link, DC Filtering, Snubber
Capacitance	1.5 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.5 mOhms
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	25.5 mm
Lead Spacing	1.004 in
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	42.5 mm
Size / Dimension [x]	1.673 in
Size / Dimension [y]	1.102 in
Size / Dimension [y]	28 mm
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	600 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

C4BSNB Series

Part	Applications	Tolerance	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Voltage Rating - AC	Mounting Type	ESR (Equivalent Series Resistance)	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
KEMET C4BSNBX4150ZBJJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42.5 mm	1.102 in	1.673 in	28 mm	1.5 µF	37 mm	1.457 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2.5 mOhms	1 kVDC	1 kV	0.866 in	22 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4200ZBLJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42 mm	1.181 in	1.654 in	30 mm	2 µF	45 mm	1.772 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2 mOhms	1 kVDC	1 kV	0.866 in	22 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4200ZALJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42 mm	1.181 in	1.654 in	30 mm	2 µF	45 mm	1.772 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2 mOhms	1 kVDC	1 kV	1.004 in	25.5 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4100ZBFJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	41.5 mm	0.787 in	1.634 "	20 mm	1 µF	40 mm	1.575 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	3.7 mOhms	1 kVDC	1 kV	0.866 in	22 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4100ZEFJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	41.5 mm	0.787 in	1.634 "	20 mm	1 µF	40 mm	1.575 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	3.7 mOhms	1 kVDC	1 kV	1.299 in	33 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4150ZAJJ	DC Filtering DC Link Snubber	5 %	Screw Terminals	42.5 mm	1.102 in	1.673 in	28 mm	1.5 µF	37 mm	1.457 in	Metallized Polypropylene (PP)	600 V	Chassis Mount	2.5 mOhms	1 kVDC	1 kV	1.004 in	25.5 mm	Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4100ZA0J	DC Filtering DC Link Snubber	5 %	Screw Terminals					1 µF			Metallized Polypropylene (PP)		Chassis Mount		1 kVDC	1 kV			Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX3470ZA0J	DC Filtering DC Link Snubber	5 %	Screw Terminals					0.47 µF			Metallized Polypropylene (PP)		Chassis Mount		1 kVDC	1 kV			Rectangular Box	85 °C	-40 °C
KEMET C4BSNBX4150ZA0J	DC Filtering DC Link Snubber	5 %	Screw Terminals					1.5 µF			Metallized Polypropylene (PP)		Chassis Mount		1 kVDC	1 kV			Rectangular Box	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	108	$ 9.56
Newark	Each	1	$ 13.81
		10	$ 12.78
		25	$ 12.43
		50	$ 11.04
		100	$ 10.49
		250	$ 9.94
		500	$ 9.67

Description

General part information

C4BSNB Series

1.5 µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Rectangular Box
