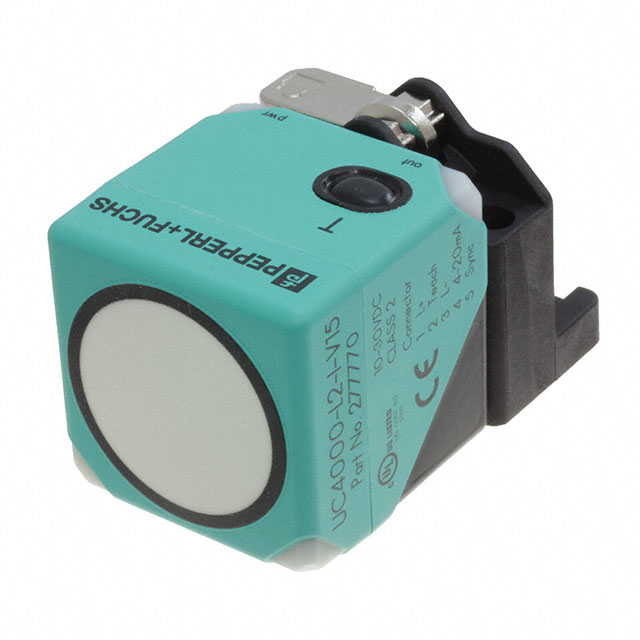

UC4000-L2-I-V15
ActivePEPPERL+FUCHS
ULTRASONIC SEN 200-4000MM ANALOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UC4000-L2-I-V15
ActivePEPPERL+FUCHS
ULTRASONIC SEN 200-4000MM ANALOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UC4000-L2-I-V15 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Polyamide (PA), Glass Filled |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | Analog Current |
| Package / Case | Module |
| Sensing Distance [Max] | 4000 mm |
| Sensing Distance [Max] | 157.48 " |
| Sensing Distance [Min] | 20 cm |
| Sensing Distance [Min] | 7.874 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 495.41 | |
| 10 | $ 479.19 | |||
Description
General part information
UC4000 Series
ULTRASONIC SEN 200-4000MM ANALOG
