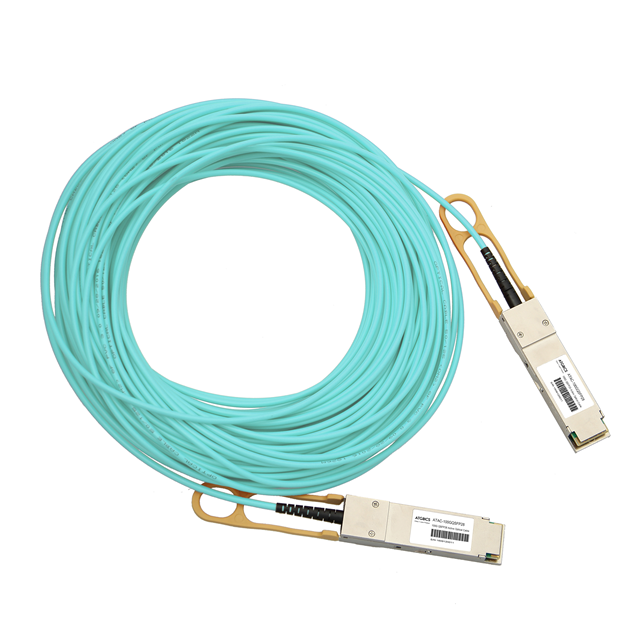

QSFP-100G-AOC2M-C

Active

ATGBICS

COMPATIBLE AOC 100G 2M

Search across all available documentation for this part.

Active

ATGBICS

COMPATIBLE AOC 100G 2M

Technical Specifications

Parameters and characteristics for this part

Specification	QSFP-100G-AOC2M-C

Cable Connectors	QSFP28 to QSFP28
Cable Type	Round
Color	Aqua, Orange
Connector Type	Plug to Plug
Fastening Type	Push-Pull
Features	Active
Gender	Male to Male
Length [x]	2 m
Length [x]	6.56 ft
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Shielding	Unshielded
Usage	Data Center Server Rack, Ethernet, Network

Part	Applications	Data Rate	Wavelength	Voltage - Supply	Connector Type	Mounting Type	Fastening Type	Shielding	Color	Gender	Features	Cable Connectors	Cable Type	Usage	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
ATGBICS QSFP-100G-SR4-C	General Purpose Networking	100 Gbps	850 nm	3.3 V	MPO-12	Pluggable QSFP28
ATGBICS QSFP-100G-SRBD-C	General Purpose Networking	100 Gbps	850 nm 900 nm	3.3 V	LC Duplex	Pluggable QSFP28
ATGBICS QSFP-100G-AOC2M-C					Plug to Plug		Push-Pull	Unshielded	Aqua Orange	Male to Male	Active	QSFP28 to QSFP28	Round	Data Center Server Rack Ethernet Network	2 m	6.56 ft	70 °C	0 °C
ATGBICS QSFP-100G-AOC30M-C					Plug to Plug		Push-Pull	Unshielded	Aqua	Male to Male	Active	QSFP28 to QSFP28	Round	Data Center Server Rack Ethernet Network			70 °C	0 °C	30 m	98.43 ft
ATGBICS QSFP-100G-LR4-T2-C	General Purpose Networking	100 Gbps	1310 nm	3.3 V	LC Duplex	Pluggable QSFP28
ATGBICS QSFP-100G-SR-BD-C	General Purpose Networking	100 Gbps	850 nm 900 nm	3.3 V	LC Duplex	Pluggable QSFP28
ATGBICS QSFP-100GBASE-LR4-C	General Purpose Networking	100 Gbps	1310 nm	3.3 V	LC Duplex	Pluggable QSFP28
ATGBICS QSFP-100G-AOC3M-C					Plug to Plug		Push-Pull	Unshielded	Aqua	Male to Male	Active	QSFP28 to QSFP28	Round	Network	3 m	9.84 ft
ATGBICS QSFP-100G-LR4-AR-C	General Purpose Networking	100 Gbps	1310 nm	3.3 V	LC Duplex	Pluggable QSFP28
ATGBICS QSFP-100G-LR4-P-C	General Purpose Networking	100 Gbps	1310 nm	3.3 V	LC Duplex	Pluggable QSFP28

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position QSFP28 to QSFP28 Plug to Plug 6.56' (2.00m) Orange, Aqua Unshielded
