CT2844A-0-100

Active

Cal Test Electronics

WIRESIL651BC 2.50 4MMOD BLACK

Search across all available documentation for this part.

Active

Cal Test Electronics

WIRESIL651BC 2.50 4MMOD BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	CT2844A-0-100

Cable Type	Hook-Up
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [diameter]	0.0028 in
Jacket (Insulation) Diameter [diameter]	0.157 in
Jacket (Insulation) Diameter [diameter]	3.99 mm
Jacket (Insulation) Material	Silicone Rubber
Jacket Color	Black
Length	100 m
Length	328.1 ft
Operating Temperature [Max]	180 °C
Operating Temperature [Min]	-60 °C
Voltage	1000 V
Wire Gauge	13 AWG

Part	Jacket Color	Length	Length	Conductor Material	Cable Type	Wire Gauge	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [diameter]	Conductor Strand [custom]
Cal Test Electronics CT2844A-0-50	Black	164 ft	50 m	Copper Bare	Hook-Up	13 AWG	1000 V	0.157 in	3.99 mm	Silicone Rubber	180 °C	-60 °C	7	0.0028 in
Cal Test Electronics CT2844-9-10		32.81 ft	10 m	Copper Bare		13 AWG	1000 V				180 °C	-60 °C		0.0028 in	651
Cal Test Electronics CT2844-2-50	Red	164 ft	50 m	Copper Bare		13 AWG	1000 V				180 °C	-60 °C		0.0028 in	651
Cal Test Electronics CT2844A-0-100	Black	328.1 ft	100 m	Copper Bare	Hook-Up	13 AWG	1000 V	0.157 in	3.99 mm	Silicone Rubber	180 °C	-60 °C	7	0.0028 in
Cal Test Electronics CT2844-2-100	Red	328.1 ft	100 m	Copper Bare		13 AWG	1000 V				180 °C	-60 °C		0.0028 in	651
Cal Test Electronics CT2844-0-50	Black	164 ft	50 m	Copper Bare		13 AWG	1000 V				180 °C	-60 °C		0.0028 in	651
Cal Test Electronics CT2844-0-10	Black	32.81 ft	10 m	Copper Bare		13 AWG	1000 V				180 °C	-60 °C		0.0028 in	651

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 8.40

General part information

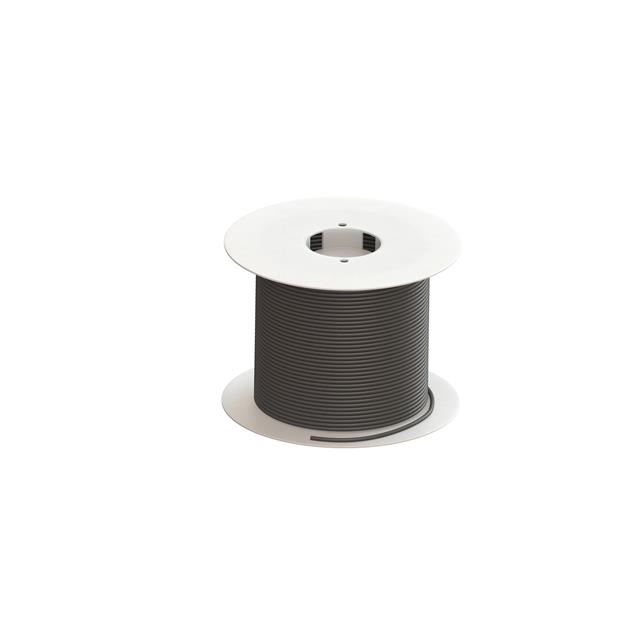

13 AWG Hook-Up Wire 7/0.0028" Black 1000V 328.1' (100.0m)
