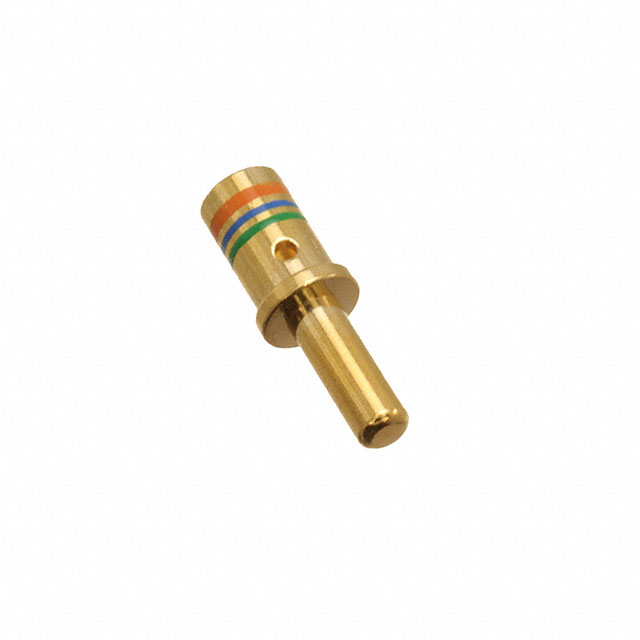

M39029/58-365
ActivePRECI-DIP SA
CONTACT SIZE 12 PIN, 12 AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/58-365
ActivePRECI-DIP SA
CONTACT SIZE 12 PIN, 12 AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/58-365 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 12 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG | 12 AWG |
M39029/58 Series
| Part | Contact Finish | Contact Type | Grade | Contact Size | Qualification | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Contact Material | Wire Gauge or Range - AWG | Type | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRECI-DIP SA | Gold | Pin | Military | 20 | MIL-C-39029 | 50 µin | 1.27 µm | Crimp | Copper Alloy | 20 AWG | Machined Signal | |
PRECI-DIP SA | Gold | Pin | Military | 12 | MIL-C-39029 | 50 µin | 1.27 µm | Crimp | Copper Alloy | 12 AWG | Machined Signal | |
PRECI-DIP SA | Gold | Pin | Military | MIL-C-39029 | 50 µin | 1.27 µm | Crimp | Copper Alloy | 22 AWG | Machined Signal | 22D |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.57 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.47 | |||
| 1500 | $ 0.46 | |||
| Bulk | 1 | $ 4.30 | ||
| 10 | $ 3.29 | |||
| 25 | $ 2.96 | |||
| 50 | $ 2.74 | |||
| 100 | $ 2.54 | |||
| 250 | $ 2.31 | |||
| 500 | $ 2.15 | |||
| 1000 | $ 2.00 | |||
| 2500 | $ 1.83 | |||
Description
General part information
M39029/58 Series
Pin Contact 12 AWG Size 12 Crimp Gold
