CLA100PD1200NA

Active

IXYS

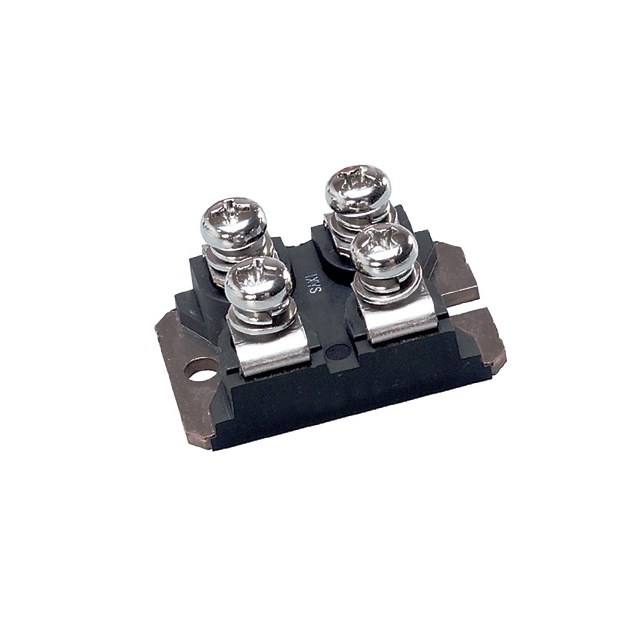

MOD THYRISTOR DUAL 1200V SOT-227

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR DUAL 1200V SOT-227

Technical Specifications

Parameters and characteristics for this part

Specification	CLA100PD1200NA

Current - Gate Trigger (Igt) (Max) [Max]	50 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	1620 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	1500 A
Current - On State (It (AV)) (Max) [Max]	100 A
Current - On State (It (RMS)) (Max) [Max]	150 A
Mounting Type	Chassis, Stud Mount
Number of SCRs, Diodes	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	SOT-227-4, miniBLOC
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	1.2 kV

Part	Voltage - Off State	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Mounting Type	Structure	Package / Case	Number of SCRs, Diodes	Current - On State (It (RMS)) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]
IXYS CLA100PD1200NA	1.2 kV	150 °C	-40 °C	50 mA	100 mA	Chassis Stud Mount	Series Connection - SCR/Diode	SOT-227-4 miniBLOC	1	150 A	100 A	1.5 V	1500 A	1620 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 29.74

General part information

SCR Module 1.2 kV 150 A Series Connection - SCR/Diode Chassis, Stud Mount SOT-227-4, miniBLOC
