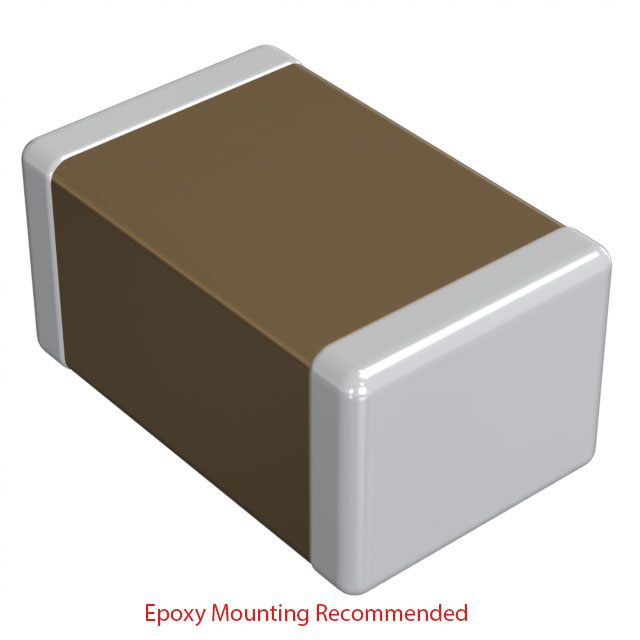

GCG1885G1H180JA01D

Active

Murata Power Solutions Inc.

CAP CER 18PF 50V X8G 0603

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CAP CER 18PF 50V X8G 0603

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Ratings	Capacitance	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Features	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Temperature Coefficient
Murata Power Solutions Inc. GCG1885G1H100JA01D	0603 (1608 Metric)	AEC-Q200	10 pF	Epoxy MLCC Surface Mount	0.9 mm	0.035 in	0.8 mm	0.063 in	1.6 mm	0.031 in	5 %	Epoxy Mountable	50 VDC	-55 °C	150 °C	Automotive	X8G
Murata Power Solutions Inc. GCG1885G1H330JA01D	0603 (1608 Metric)	AEC-Q200	33 pF	Epoxy MLCC Surface Mount	0.9 mm	0.035 in	0.8 mm	0.063 in	1.6 mm	0.031 in	5 %	Epoxy Mountable	50 VDC	-55 °C	150 °C	Automotive	X8G
Murata Power Solutions Inc. GCG1885G1H102JA01D	0603 (1608 Metric)	AEC-Q200	0.001 µF	Epoxy MLCC Surface Mount	0.9 mm	0.035 in	0.8 mm	0.063 in	1.6 mm	0.031 in	5 %	Epoxy Mountable	50 VDC	-55 °C	150 °C	Automotive	X8G
Murata Power Solutions Inc. GCG1885G1H180JA01D	0603 (1608 Metric)	AEC-Q200	18 pF	Epoxy MLCC Surface Mount	0.9 mm	0.035 in	0.8 mm	0.063 in	1.6 mm	0.031 in	5 %	Epoxy Mountable	50 VDC	-55 °C	150 °C	Automotive	X8G
Murata Power Solutions Inc. GCG1885G1H471JA01D	0603 (1608 Metric)	AEC-Q200	470 pF	Epoxy MLCC Surface Mount	0.9 mm	0.035 in	0.8 mm	0.063 in	1.6 mm	0.031 in	5 %	Epoxy Mountable	50 VDC	-55 °C	150 °C	Automotive	X8G
Murata Power Solutions Inc. GCG1885G1H470JA01D	0603 (1608 Metric)	AEC-Q200	47 pF	Epoxy MLCC Surface Mount	0.9 mm	0.035 in	0.8 mm	0.063 in	1.6 mm	0.031 in	5 %	Epoxy Mountable	50 VDC	-55 °C	150 °C	Automotive	X8G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.05

General part information

18 pF ±5% 50V Ceramic Capacitor X8G 0603 (1608 Metric)
