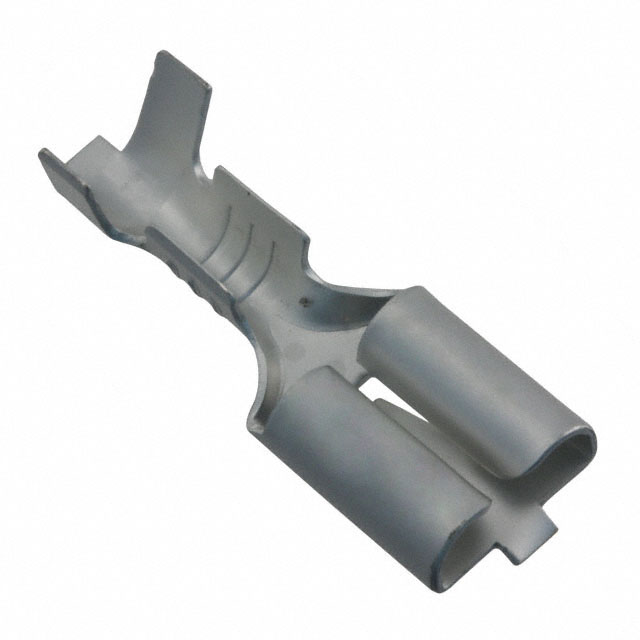

0357253710

Obsolete

Molex

CONN QC RCPT 14-18AWG 0.250

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0357253710

Obsolete

Molex

CONN QC RCPT 14-18AWG 0.250

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0357253710

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Length - Overall [x]	0.772 in
Length - Overall [x]	19.61 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	7.8 mm
Tab Length	0.307 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	14 AWG

035725 Series

Part	Tab Width	Tab Width	Gender	Contact Finish	Insulation	Mounting Type	Terminal Type	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Termination	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Length	Insulation Diameter	Insulation Diameter	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min]	Insulation Diameter [Max]
Molex 0357254110	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line)	Standard	0.772 in	19.61 mm	7.8 mm	0.307 in	Crimp	0.032 in	0.81 mm	17.5 AWG	20 AWG	Brass
Molex 0357252610	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line) Right Angle	Angled - 90° Flag					Crimp	0.032 in	0.81 mm	12 AWG	18 AWG	Brass
Molex 0357254810	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line) Right Angle	Angled - 90° Flag					Crimp	0.032 in	0.81 mm	14 AWG	18 AWG	Brass	0.11 in	3.81 mm	0.15 in	2.79 mm
Molex 0357254710	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line)	Standard	0.756 in	19.2 mm			Crimp	0.032 in	0.81 mm	10 AWG	14 AWG	Brass					5 mm	0.197 "	2.79 mm	0.11 "
Molex 0357251810	6.35 mm	0.25 in	Male	Tin	Non-Insulated	Free Hanging (In-Line)	Standard	0.965 in	24.51 mm	14.2 mm	0.559 "	Crimp	0.032 in	0.81 mm	14 AWG	18 AWG	Brass									3.61 mm	0.142 in
Molex 0357253710	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line)	Standard	0.772 in	19.61 mm	7.8 mm	0.307 in	Crimp	0.032 in	0.81 mm	14 AWG	18 AWG	Brass
Molex 0357254910	6.35 mm	0.25 in	Female Male	Tin	Non-Insulated	Free Hanging (In-Line)	Stacked	0.772 in	19.61 mm		8 mm	Crimp	0.032 in	0.81 mm	14 AWG	18 AWG	Brass									4.6 mm	0.181 "	0.315 in
Molex 0357252410	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line)	Standard	0.756 in	19.2 mm	7.8 mm	0.307 in	Crimp	0.032 in	0.81 mm	14 AWG	18 AWG	Brass												3.81 mm	0.15 in
Molex 0357254610	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line)	Standard	0.756 in	19.2 mm			Crimp	0.032 in	0.81 mm	14 AWG	18 AWG	Brass						0.118 in	1.5 mm	0.059 "						3 mm
Molex 0357252710	6.35 mm	0.25 in	Female	Tin	Non-Insulated	Free Hanging (In-Line)	Standard	0.756 in	19.2 mm	7.8 mm	0.307 in	Crimp	0.032 in	0.81 mm	10 AWG	14 AWG	Brass		5.31 mm		3.81 mm											0.15 "	0.209 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

035725 Series

0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
