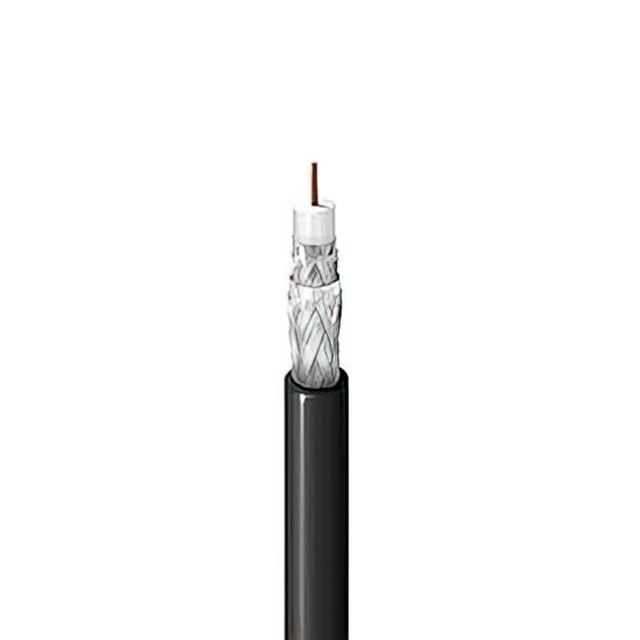

1189AP 8771000

Active

Belden Inc.

COAX 75 OHM RG6 18AWG PLENUM

Search across all available documentation for this part.

Active

Belden Inc.

COAX 75 OHM RG6 18AWG PLENUM

Technical Specifications

Parameters and characteristics for this part

Specification	1189AP 8771000

Cable Group	RG-6
Cable Type	Coaxial - Plenum
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.17 in
Dielectric Diameter [diameter]	4.32 mm
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Features	Quad Shield
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.248 in
Jacket (Insulation) Diameter [diameter]	6.3 mm
Jacket Color	Natural
Length	304.8 m
Length	1000 ft
Shield Coverage	100 %, 60 %, 40 %
Shield Material	Aluminum
Shield Type	Foil, Braid
Usage	CATV
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Shield Type	Length	Length	Usage	Impedance	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Material	Wire Gauge	Cable Type	Shield Coverage	Conductor Material	VoP, Velocity of Propagation	Jacket Color	Conductor Strand	Features
Belden Inc. 1189AP 8771000	Braid Foil	304.8 m	1000 ft	CATV	75 Ohms	0.248 in	6.3 mm	Foam Fluorinated Ethylene Propylene (FFEP)	RG-6	0.17 in	4.32 mm	Aluminum	18 AWG	Coaxial - Plenum	40 % 60 % 100 %	Copper Coated Steel	83	Natural	Solid	Quad Shield

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.08

General part information

Coaxial - Plenum Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
