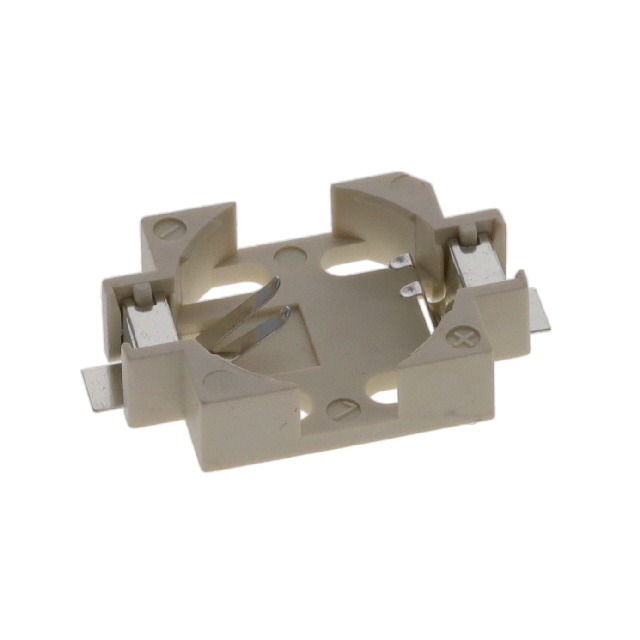

BH-90-5
ActiveAdam Tech
BATTERY HOLDER SURFACE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
BH-90-5
ActiveAdam Tech
BATTERY HOLDER SURFACE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BH-90-5 |
|---|---|
| Battery Cell Size | 16 mm |
| Battery Cell Size | Coin |
| Battery Series | 1632 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 5.5 mm |
| Height Above Board | 0.217 in |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.37 | |
| 10 | $ 1.13 | |||
| 70 | $ 0.97 | |||
| 140 | $ 0.92 | |||
| 280 | $ 0.87 | |||
| 560 | $ 0.82 | |||
| 1050 | $ 0.78 | |||
| 2520 | $ 0.73 | |||
| 5040 | $ 0.69 | |||
Description
General part information
BH-90 Series
Battery Holder (Open) Coin, 16.0mm 1 Cell SMD (SMT) Tab
