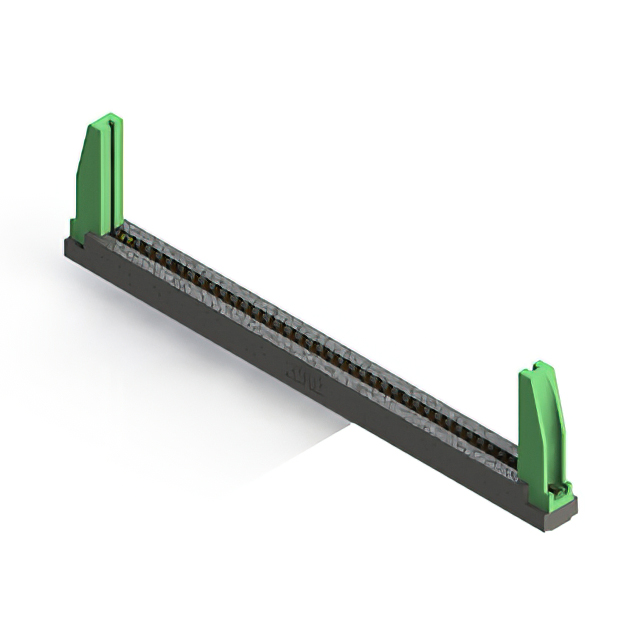

356-039-521-178

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-039-521-178

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-039-521-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

356-039 Series

Part	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish	Color	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Termination Rows	Number of Positions/Bay/Row [custom]	Card Type	Material - Insulation	Pitch [x]	Pitch [x]	Contact Material	Number of Rows	Features
EDAC Inc. 356-039-520-102	Cantilever	10 Áin	0.25 Ám	Panel Mount Through Hole	78	-40 °C	105 ░C	Female	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2
EDAC Inc. 356-039-500-101	Cantilever	10 Áin	0.25 Ám	Free Hanging (In-Line)	78	-40 °C	105 ░C	Female				Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2
EDAC Inc. 356-039-500-104	Cantilever	10 Áin	0.25 Ám		78	-40 °C	105 ░C	Female	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2
EDAC Inc. 356-039-521-158	Cantilever	10 Áin	0.25 Ám	Panel Mount Through Hole	78	-40 °C	105 ░C	Female			4-40 Flush Mount Threaded Insert Top Opening	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2	Card Guides
EDAC Inc. 356-039-500-103	Cantilever	10 Áin	0.25 Ám		78	-40 °C	105 ░C	Female	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2
EDAC Inc. 356-039-521-103	Cantilever	10 Áin	0.25 Ám	Panel Mount Through Hole	78	-40 °C	105 ░C	Female	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2
EDAC Inc. 356-039-521-108	Cantilever	10 Áin	0.25 Ám	Panel Mount Through Hole	78	-40 °C	105 ░C	Female			4-40 Flush Mount Threaded Insert Top Opening	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2
EDAC Inc. 356-039-400-103	Cantilever				78	-40 °C	105 ░C	Female	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Tin	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2
EDAC Inc. 356-039-521-178	Cantilever	10 Áin	0.25 Ám	Panel Mount Through Hole	78	-40 °C	105 ░C	Female			4-40 Flush Mount Threaded Insert Top Opening	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2	Card Guides
EDAC Inc. 356-039-500-178	Cantilever	10 Áin	0.25 Ám		78	-40 °C	105 ░C	Female			4-40 Flush Mount Threaded Insert Top Opening	Gold	Black	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	1	39	Non Specified - Dual Edge	Polyester Thermoplastic	0.156 in	3.96 mm	Copper Alloy	2	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 23.15
Newark	Each	1	$ 26.88
		100	$ 16.79
		250	$ 13.73
		500	$ 12.35
		1000	$ 10.52

Description

General part information

356-039 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
