121-83-628-41-001101
ActivePRECI-DIP SA

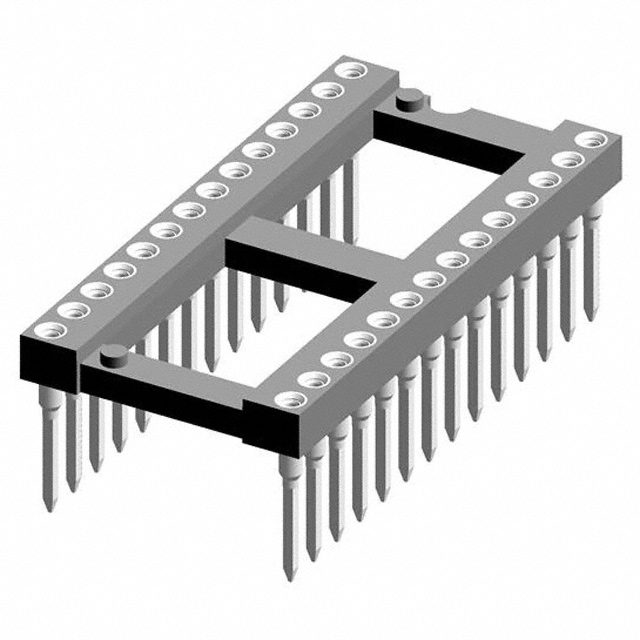

CONN IC DIP SOCKET 28POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
121-83-628-41-001101
ActivePRECI-DIP SA
CONN IC DIP SOCKET 28POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 121-83-628-41-001101 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 28 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Wire Wrap |
| Termination Post Length | 6.6 mm |
| Termination Post Length | 0.26 in |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
121-83 Series
| Part | Number of Positions or Pins (Grid) | Contact Material - Post [custom] | Pitch - Post | Pitch - Post | Contact Finish - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Mounting Type | Termination | Features | Contact Material - Mating | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Resistance | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Housing Material | Type | Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRECI-DIP SA | 28 | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.4 in | 10.16 mm | DIP | -55 °C | 125 °C | |||||
PRECI-DIP SA | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.3 " | 7.62 mm | DIP | -55 °C | 125 °C | 2 x 5 | 10 | ||||
PRECI-DIP SA | 36 | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.6 in | 15.24 mm | DIP | -55 °C | 125 °C | |||||
PRECI-DIP SA | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.6 in | 15.24 mm | DIP | -55 °C | 125 °C | ||||||
PRECI-DIP SA | 2 6 12 | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.3 " | 7.62 mm | DIP | -55 °C | 125 °C | |||||
PRECI-DIP SA | 8 | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.3 " | 7.62 mm | DIP | -55 °C | 125 °C | |||||
PRECI-DIP SA | 28 | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.6 in | 15.24 mm | DIP | -55 °C | 125 °C | |||||
PRECI-DIP SA | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.3 " | 7.62 mm | DIP | -55 °C | 125 °C | 2 | 6 | 3 | |||
PRECI-DIP SA | 20 | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.4 in | 10.16 mm | DIP | -55 °C | 125 °C | |||||
PRECI-DIP SA | 20 | Brass | 2.54 mm | 0.1 in | Tin | Gold | 0.1 in | 2.54 mm | Through Hole | Wire Wrap | Open Frame | Beryllium Copper | 6.6 mm | 0.26 in | UL94 V-0 | 10 mOhm | 29.5 Áin | 0.75 Ám | 1 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.3 " | 7.62 mm | DIP | -55 °C | 125 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 735 | $ 3.72 | |
Description
General part information
121-83 Series
28 (2 x 14) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
