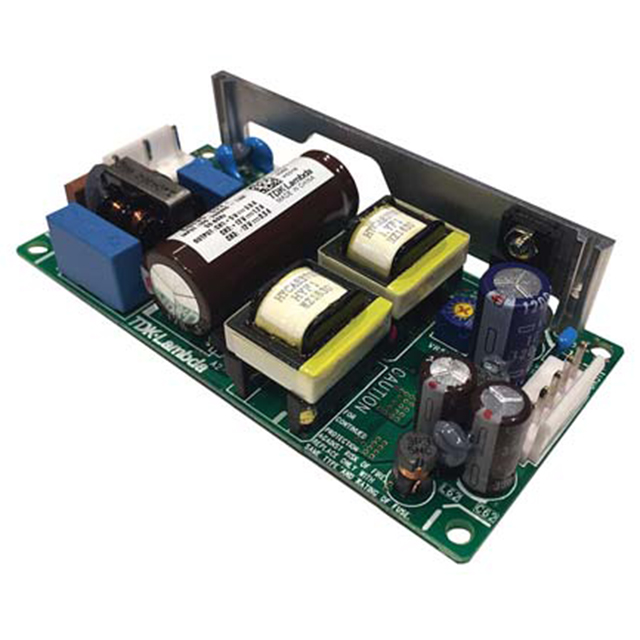

CUT35-522/B - CUT35522

CUT35-522/B

Active
TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 3 OUTPUT, 20.4 W, 85V AC TO 265V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+3
CUT35-522/B - CUT35522

CUT35-522/B

Active
TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 3 OUTPUT, 20.4 W, 85V AC TO 265V AC

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationCUT35-522/B
ApplicationsITE (Commercial), Medical
Approval AgencyCE
Current - Output 13 A
Current - Output 21.2 A
Current - Output 3850 mA
Efficiency81 %
FeaturesBaseplate, Universal Input, DC Input Capable
Minimum Load RequiredFalse
Mounting TypeChassis Mount
Number of Outputs3
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 °C
Power (Watts)35 W
Size / Dimension [x]4.8 in
Size / Dimension [x]122 mm
Size / Dimension [y]2.22 in
Size / Dimension [y]56.5 mm
Size / Dimension [z]28 mm
Size / Dimension [z]1.1 in
TypeOpen Frame
Voltage - Input [Max]265 VAC
Voltage - Input [Min]85 VAC
Voltage - Isolation3000 V
Voltage - Output 15 V
Voltage - Output 212 V
Voltage - Output 3-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 47.63
10$ 43.20
25$ 42.65
50$ 41.55
NewarkEach 1$ 47.63
10$ 43.20
25$ 42.65
50$ 41.55

Description

General part information

CUT35 Series

Switching Power Supplies 35.4W 5V 3A/12V 1.2A /-12V 0.85A Cover
