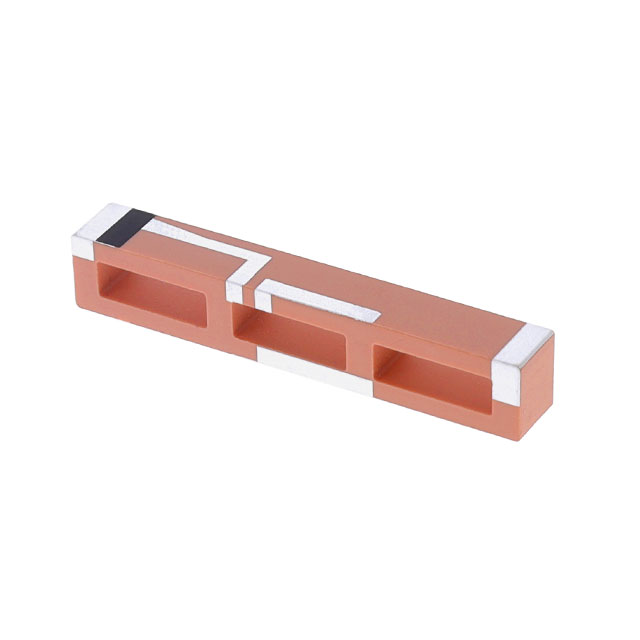

ANT3505B002TWPENS
ActivePulse Electronics
RF ANT 892MHZ/1.9GHZ CHIP SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT3505B002TWPENS
ActivePulse Electronics
RF ANT 892MHZ/1.9GHZ CHIP SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT3505B002TWPENS |
|---|---|
| Antenna Type | Chip |
| Applications | GSM |
| Frequency (Center/Band) | 1.9 GHz, 892 MHz |
| Frequency Range [Max] | 960 MHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 2.91 dBi |
| Height (Max) [Max] | 6 mm |
| Height (Max) [Max] | 0.236 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 4 W |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 3.8, 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.16 | |
| 10 | $ 1.94 | |||
| 25 | $ 1.84 | |||
| 100 | $ 1.59 | |||
| 300 | $ 1.51 | |||
| 500 | $ 1.44 | |||
Description
General part information
ANT3505 Series
RF ANTENNA GSM Chip Solder Surface Mount
Documents
Technical documentation and resources
