V23047A1009A511

Active

TE Connectivity Potter & Brumfield Relays

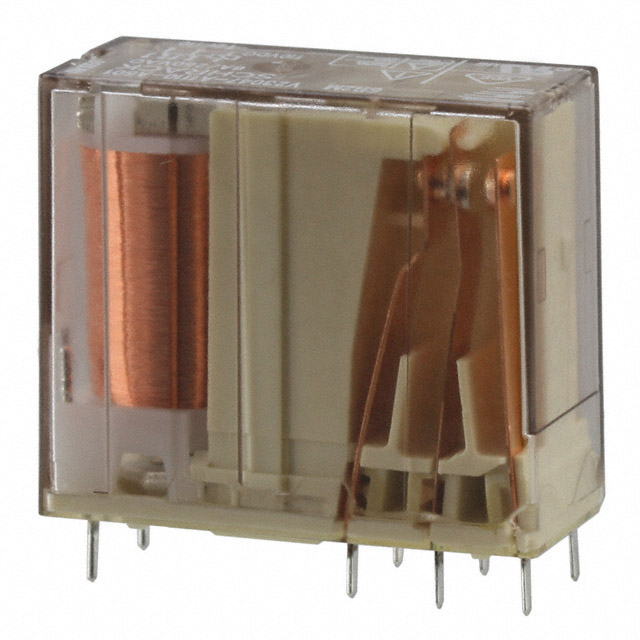

RELAY SAFETY DPST 6A 9V

Deep-Dive with AI

Search across all available documentation for this part.

V23047A1009A511

Active

TE Connectivity Potter & Brumfield Relays

RELAY SAFETY DPST 6A 9V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23047A1009A511

Coil Current	77.6 mA
Coil Power	698 mW
Coil Voltage	9 VDC
Contact Form	DPST-NO/NC
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Sealed - Fully
Mounting Type	Through Hole
Must Operate Voltage	6.8 VDC
Must Release Voltage	0.9 VDC
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

V23047 Series

Part	Termination Style	Coil Current	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Power	Contact Material	Coil Resistance	Coil Voltage	Must Operate Voltage	Features	Switching Voltage [Max]	Contact Rating (Current)	Mounting Type	Contact Form	Coil Type	Approval Agency	Relay Type	Load - Max Switching [Max]
TE Connectivity Potter & Brumfield Relays V23047-A1024-A511	PC Pin	29.2 mA	2.4 VDC	70 °C	-25 °C	700 mW	Silver Nickel (AgNi)	823 Ohms	24 VDC	18 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPST-NO/NC
TE Connectivity Potter & Brumfield Relays V23047A1021A501	PC Pin	33.3 mA	2.1 VDC	70 °C	-25 °C	700 mW	Silver Nickel (AgNi)	630 Ohms	21 VDC	15.8 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPDT (2 Form C)
TE Connectivity Potter & Brumfield Relays V23047-A1006-A511	PC Pin	118 mA	0.6 VDC	70 °C	-25 °C	706 mW	Silver Nickel (AgNi)	51 Ohms		4.5 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPST-NO/NC
TE Connectivity Potter & Brumfield Relays V23047-A1018-A501	PC Pin	37.3 mA	1.8 VDC	70 °C	-25 °C	671 mW	Silver Nickel (AgNi)	483 Ohms	18 VDC	13.5 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPDT (2 Form C)
TE Connectivity Potter & Brumfield Relays V23047A1018A511	PC Pin	37.3 mA	1.8 VDC	70 °C	-40 °C		Silver Nickel (AgNi)	483 Ohms	18 VDC	13.5 VDC		400 VAC	6 A	Through Hole	DPST-NO/NC	Non Latching	CCC cURus TUV VDE	General Purpose	2400 VA
TE Connectivity Potter & Brumfield Relays V23047-A1009-A501	PC Pin	77.6 mA	0.9 VDC	70 °C	-25 °C	698 mW	Silver Nickel (AgNi)		9 VDC	6.8 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPDT (2 Form C)
TE Connectivity Potter & Brumfield Relays V23047A1009A511	PC Pin	77.6 mA	0.9 VDC	70 °C	-25 °C	698 mW	Silver Nickel (AgNi)		9 VDC	6.8 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPST-NO/NC
TE Connectivity Potter & Brumfield Relays V23047A1036A511	PC Pin	19.4 mA	3.6 VDC	70 °C	-40 °C		Silver Nickel (AgNi)	1.851 kOhms	36 VDC	27 VDC		400 VAC	6 A	Through Hole	DPST-NO/NC	Non Latching	CCC cURus TUV VDE	General Purpose	2400 VA
TE Connectivity Potter & Brumfield Relays V23047-A1012-A501	PC Pin	58.3 mA	1.2 VDC	70 °C	-25 °C	699 mW	Silver Nickel (AgNi)	206 Ohms	12 VDC	9 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPDT (2 Form C)
TE Connectivity Potter & Brumfield Relays V23047-A1024-A501	PC Pin	29.2 mA	2.4 VDC	70 °C	-25 °C	700 mW	Silver Nickel (AgNi)	823 Ohms	24 VDC	18 VDC	Sealed - Fully	400 VAC	6 A	Through Hole	DPDT (2 Form C)
