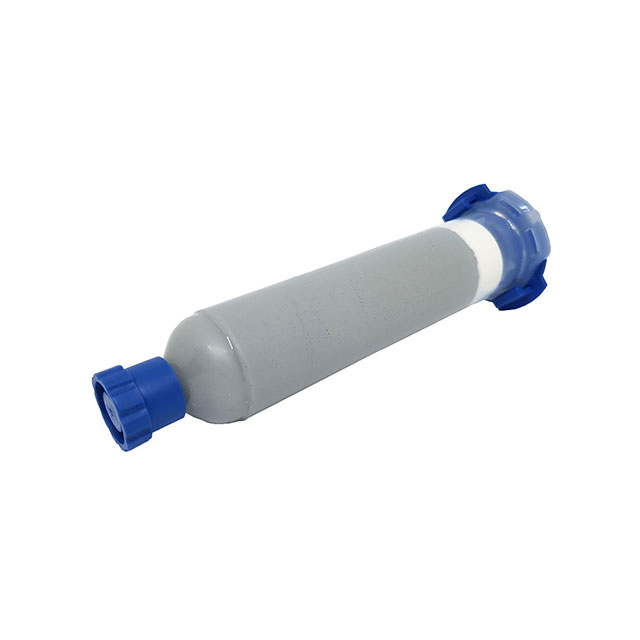

TG-NSP80-30CC

Active

t-Global Technology

NON-SILICONE PUTTY 30CC GREY

Search across all available documentation for this part.

Active

t-Global Technology

NON-SILICONE PUTTY 30CC GREY

Technical Specifications

Parameters and characteristics for this part

Specification	TG-NSP80-30CC

Color	Gray
Shelf Life	60 Months
Size / Dimension	30cc Cartridge
Thermal Conductivity	8.3 W/m-K
Type	Non-Silicone Putty
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Min]	-55 °C
Usable Temperature Range [Min]	-67 °F

Part	Type	Usable Temperature Range [Max]	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Thermal Conductivity	Shelf Life	Size / Dimension	Color	Size / Dimension
t-Global Technology TG-NSP80-4OZ	Non-Silicone Putty	200 °C	200 °C	-55 °C	-67 °F	8.3 W/m-K	60 Months	4 oz	Gray
t-Global Technology TG-NSP80-1OZ	Non-Silicone Putty	200 °C	200 °C	-55 °C	-67 °F	8.3 W/m-K	60 Months	1 oz	Gray
t-Global Technology TG-NSP80-30CC	Non-Silicone Putty	200 °C	200 °C	-55 °C	-67 °F	8.3 W/m-K	60 Months		Gray	30cc Cartridge
t-Global Technology TG-NSP80-1LB	Non-Silicone Putty	200 °C	200 °C	-55 °C	-67 °F	8.3 W/m-K	60 Months	1 lb	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Non-Silicone Putty 30cc Cartridge
