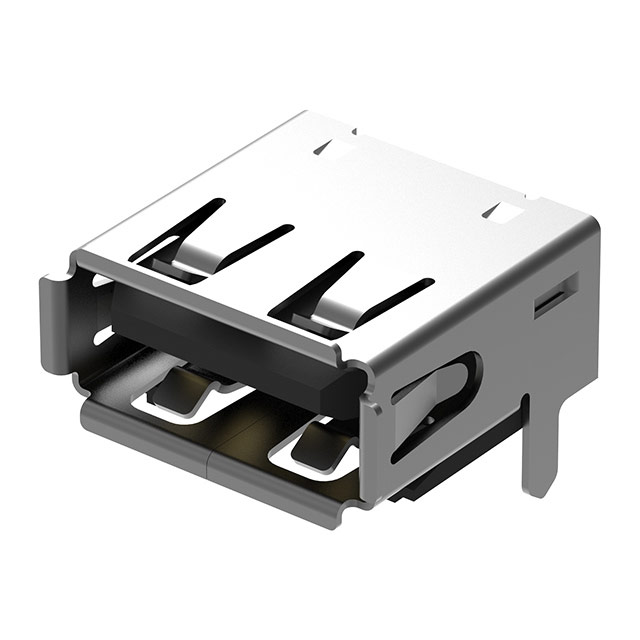

USB1046-GF-0270-L-B-A

Active

GCT

USB A SKT, TOP MOUNT, SMT, R/A, GF, BLACK, WITH 2.7MM SHELL STAKE, T&R ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

GCT

USB A SKT, TOP MOUNT, SMT, R/A, GF, BLACK, WITH 2.7MM SHELL STAKE, T&R ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	USB1046-GF-0270-L-B-A

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Through Hole
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Steel (SPCC)
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Contact Finish	Insulation Color	Number of Contacts [custom]	Connector Type	Shielding	Material Flammability Rating	Specifications	Current Rating (Amps)	Mating Cycles	Termination	Gender	Mounting Feature	Number of Ports	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shell/Shielding Material
GCT USB1046-GF-0270-L-B-A	Gold	Black	4	USB-A (USB TYPE-A)	Shielded	UL94 V-0	USB 2.0	1.5 A	1500	Solder	Receptacle	Horizontal	1	30 V	85 °C	-40 °C	Surface Mount Through Hole	Steel (SPCC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	30160	$ 0.34
Newark	Each (Supplied on Full Reel)	30000	$ 0.34

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Surface Mount, Through Hole
