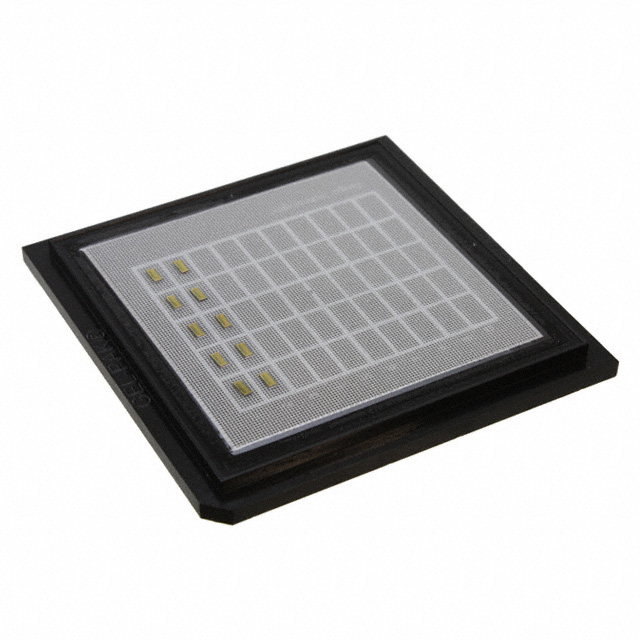

AMMC-5024-W10
ObsoleteBroadcom Limited
IC RF AMP 30KHZ-40GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
AMMC-5024-W10
ObsoleteBroadcom Limited
IC RF AMP 30KHZ-40GHZ MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMMC-5024-W10 |
|---|---|
| Current - Supply | 350 mA |
| Frequency [Max] | 40 GHz |
| Frequency [Min] | 30 kHz |
| Gain | 17.5 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 7.2 dBm |
| P1dB | 21 dBm |
| Package / Case | Module |
| Supplier Device Package | Module |
| Test Frequency | 26 GHz |
| Voltage - Supply [Max] | 7 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMMC-5024 Series
RF Amplifier IC 30KHz ~ 40GHz Module
Documents
Technical documentation and resources
No documents available
