0191440037

Active

Molex

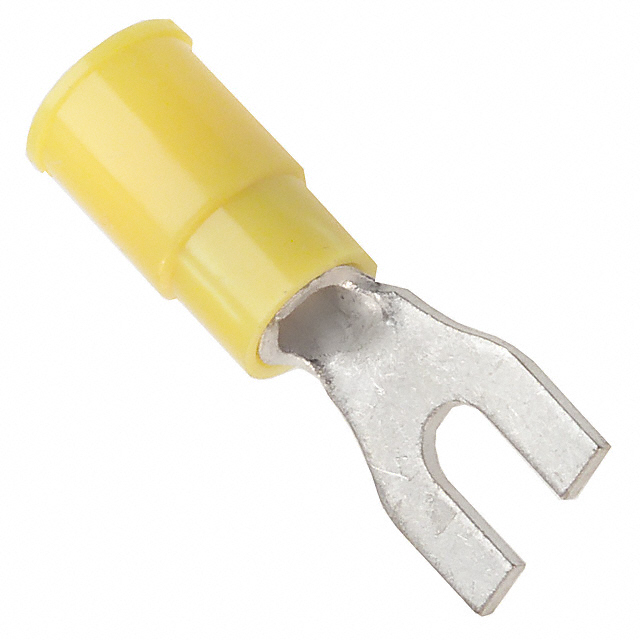

CONN SPADE TERM 10-12AWG #6 YEL

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

0191440037

Active

Molex

CONN SPADE TERM 10-12AWG #6 YEL

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191440037

Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter	0.25 "
Insulation Diameter	6.35 mm
Length - Overall	1.103 in
Length - Overall	28.02 mm
Length - Ring Center to Termination [x]	7.65 mm
Length - Ring Center to Termination [x]	0.301 in
Length - Termination	13.97 mm
Length - Termination	0.55 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	3.71 mm
Tongue Inside Opening [x]	0.146 in
Width - Outer Edges [x]	0.375 in
Width - Outer Edges [x]	9.53 mm
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019144 Series

Part	Insulation Diameter	Insulation Diameter	Insulation	Mounting Type	Color	Material - Insulation	Stud/Tab Size	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Contact Material	Length - Termination	Length - Termination	Length - Overall	Length - Overall	Stud/Tab Size	Insulation Diameter [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]
Molex 0191440041	0.25 "	6.35 mm	Insulated	Free Hanging (In-Line)	Yellow	Poly-Vinyl Chloride (PVC)	8 Stud	0.173 in	4.39 mm	7.65 mm	0.301 in	Electro-Tin	0.375 in	9.53 mm	Standard	12 AWG	10 AWG	Crimp	Copper	13.97 mm	0.55 in	1.103 in	28.02 mm
Molex 0191440005		3.68 mm	Insulated	Free Hanging (In-Line)	Red	Poly-Vinyl Chloride (PVC)		0.198 in	5.03 mm	7.7 mm	0.303 in	Electro-Tin			Standard	22 AWG	17.5 AWG	Crimp	Copper			0.915 in	23.24 mm	10 Stud	0.145 "	8.03 mm	0.316 in
Molex 0191440025			Insulated	Free Hanging (In-Line)	Blue	Poly-Vinyl Chloride (PVC)	8 Stud	0.173 in	4.39 mm	6.83 mm	0.269 in	Electro-Tin	0.388 in	9.86 mm	Standard			Crimp	Copper						0.175 in			4.45 mm	23.16 mm	0.912 in
Molex 0191440018			Insulated	Free Hanging (In-Line)	Blue	Poly-Vinyl Chloride (PVC)		0.146 in	3.71 mm	5.36 mm	0.211 in	Electro-Tin	0.295 in	7.49 mm	Standard			Crimp	Copper					6 Stud	0.175 in			4.45 mm	20.04 mm	0.789 in
Molex 0191440002		3.68 mm	Insulated	Free Hanging (In-Line)	Red	Poly-Vinyl Chloride (PVC)		0.146 in	3.71 mm	7.7 mm	0.303 in	Electro-Tin			Standard	22 AWG	17.5 AWG	Crimp	Copper			0.915 in	23.24 mm	6 Stud	0.145 "	8.03 mm	0.316 in
Molex 0191440039	0.25 "	6.35 mm	Insulated	Free Hanging (In-Line)	Yellow	Poly-Vinyl Chloride (PVC)	8 Stud	0.173 in	4.39 mm	7.65 mm	0.301 in	Electro-Tin	0.375 in	9.53 mm	Standard	12 AWG	10 AWG	Crimp	Copper	13.97 mm	0.55 in	1.103 in	28.02 mm
Molex 0191440027			Insulated	Free Hanging (In-Line)	Blue	Poly-Vinyl Chloride (PVC)		0.198 in	5.03 mm	6.83 mm	0.269 in	Electro-Tin	0.388 in	9.86 mm	Standard			Crimp	Copper					10 Stud	0.175 in			4.45 mm	23.16 mm	0.912 in
Molex 0191440037	0.25 "	6.35 mm	Insulated	Free Hanging (In-Line)	Yellow	Poly-Vinyl Chloride (PVC)		0.146 in	3.71 mm	7.65 mm	0.301 in	Electro-Tin	0.375 in	9.53 mm	Standard	12 AWG	10 AWG	Crimp	Copper	13.97 mm	0.55 in	1.103 in	28.02 mm	6 Stud
Molex 0191440097	0.25 "	6.35 mm	Insulated	Free Hanging (In-Line)	Yellow	Poly-Vinyl Chloride (PVC)				7.65 mm	0.301 in	Electro-Tin	0.375 in	9.53 mm	Standard	12 AWG	10 AWG	Crimp	Copper	13.97 mm	0.55 in	1.103 in	28.02 mm	10 Stud
Molex 0191440019			Insulated	Free Hanging (In-Line)	Blue	Poly-Vinyl Chloride (PVC)		0.146 in	3.71 mm	5.36 mm	0.211 in	Electro-Tin	0.295 in	7.49 mm	Standard			Crimp	Copper					6 Stud	0.175 in			4.45 mm	20.04 mm	0.789 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.26
		100	$ 0.20
		1000	$ 0.17

Description

General part information

019144 Series

Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG
