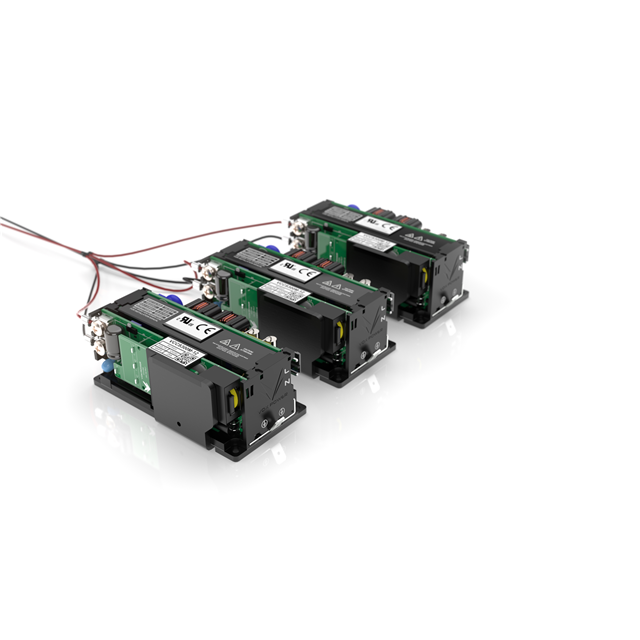

VCCS300S-12
ActiveVox Power Ltd.
AC/DC CONVERTER 12V 300W
Deep-Dive with AI
Search across all available documentation for this part.
VCCS300S-12
ActiveVox Power Ltd.
AC/DC CONVERTER 12V 300W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCCS300S-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 25 A |
| Efficiency | 95 % |
| Features | PFC, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 101.3 mm |
| Size / Dimension [x] | 3.99 in |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [z] | 1.58 " |
| Size / Dimension [z] | 40.2 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 154.54 | |
| 5 | $ 149.79 | |||
| 24 | $ 145.03 | |||
| 48 | $ 135.52 | |||
Description
General part information
VCCS300 Series
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
