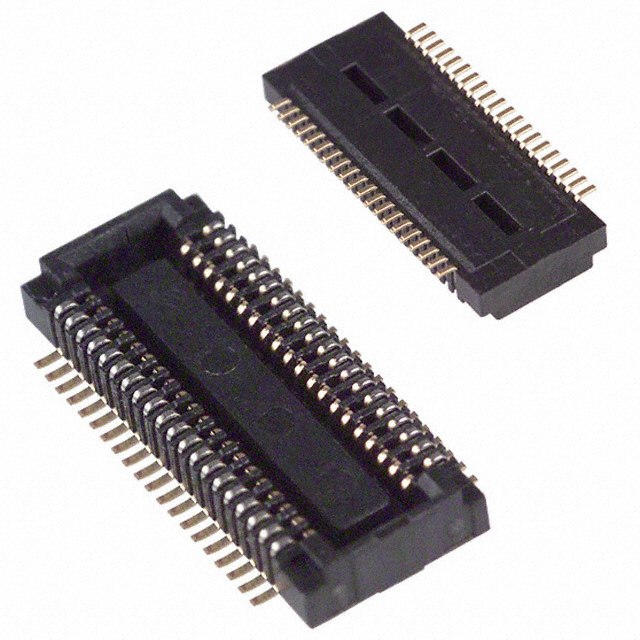

245602040000829

Obsolete

Kyocera AVX

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Kyocera AVX

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	245602040000829

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Positions	Mated Stacking Heights	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Pitch [x]	Pitch [x]
Kyocera AVX 245602660000829H+
Kyocera AVX 245602634000829H+
Kyocera AVX 245602020000829H+
Kyocera AVX 245602650000829H+
Kyocera AVX 245602644000829H+
Kyocera AVX 245602654000829H+
Kyocera AVX 245602640600829H+	0.057 in	1.45 mm	Surface Mount	40	1.5 mm	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2	0.016 in	0.4 mm
Kyocera AVX 245602624000829H+	0.057 in	1.45 mm	Surface Mount	24	1.5 mm				Center Strip Contacts Receptacle	2	0.016 in	0.4 mm
Kyocera AVX 245602636000829H+
Kyocera AVX 245602040000829	0.057 in	1.45 mm	Surface Mount	40	1.5 mm	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
