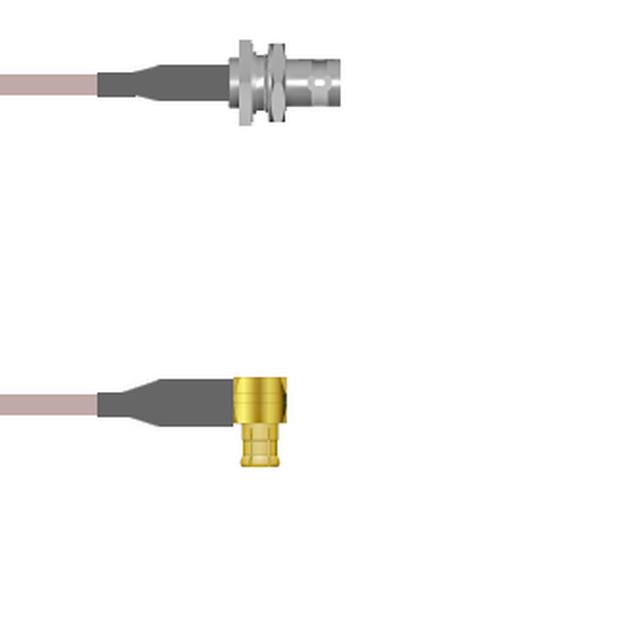

Q-06016000S002M
ActiveAmphenol Custom Cable
CBL ASSY BNC-MCX JACK-PLUG 6.6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-06016000S002M
ActiveAmphenol Custom Cable
CBL ASSY BNC-MCX JACK-PLUG 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-06016000S002M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-179 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 75 Ohms |
| Style | BNC to MCX |
Q-060160 Series
| Part | Length | Length | 1st Connector Mounting Type | Cable Type | 1st Connector | 2nd Connector Mounting Type | 1st Connector Mounting Feature | Color | Style | Overall Impedance | 1st Contact Gender | 2nd Contact Gender | Frequency - Max [Max] | 2nd Connector | Features | Length [x] | Length [x] | Length | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 50 cm | 19.69 " | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | ||||
Amphenol Custom Cable | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | 457.2 mm | 457.2 mm | ||||
Amphenol Custom Cable | 152.4 mm | 6 in | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | ||||
Amphenol Custom Cable | 228.6 mm | 9 " | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | ||||
Amphenol Custom Cable | 76.2 mm | 3 in | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | ||||
Amphenol Custom Cable | 2 m | 78.7 in | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | 6.6 ft | |||
Amphenol Custom Cable | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | 250 mm | 9.843 " | ||||
Amphenol Custom Cable | 1 m | 39.4 in | Panel Mount | RG-179 | BNC Jack | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Copper | BNC to MCX | 75 Ohms | Female | Male | 4 GHz | MCX Plug Right Angle | Shielded | 3.3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 80.68 | |
| 25 | $ 75.15 | |||
| 50 | $ 69.62 | |||
| 100 | $ 64.88 | |||
| 250 | $ 60.93 | |||
Description
General part information
Q-060160 Series
Cable Assembly Coaxial BNC to MCX RG-179 78.7" (2.0m) 6.6'
Documents
Technical documentation and resources
No documents available
