1P9C

Active

HELLERMANNTYTON

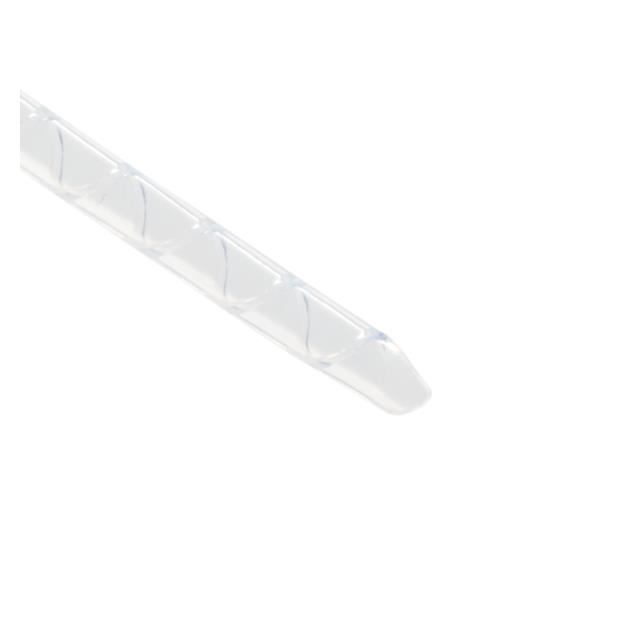

SPIRALWRAP PROTECTIVE SHEATHING, 0.13" DIAMETER, PTFE, NATURAL, 100 FT/ROLL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

1P9C

Active

HELLERMANNTYTON

SPIRALWRAP PROTECTIVE SHEATHING, 0.13" DIAMETER, PTFE, NATURAL, 100 FT/ROLL

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1P9C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	12.7 mm
Diameter - Inside, Expanded [diameter]	0.5 in
Diameter - Outside, Non-Expanded [diameter]	3.18 mm
Diameter - Outside, Non-Expanded [diameter]	0.125 in
Features	Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polytetrafluoroethylene (PTFE)
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-268 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	0.51 mm
Wall Thickness [custom]	0.02 in

- Series

Part	Opening Size [custom]	Opening Size [custom]	Width [x]	Width	Material	Type Attributes	Mounting Type	Length	Length	Height [z]	Height [z]	Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Type	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Features	Abrasion Protection	Wall Thickness [custom]	Wall Thickness [custom]	Simplex/Duplex	Convert From (Adapter End)	Ferrule Material	Housing Material	Convert To (Adapter End)	Mode	Cable Type	Style	Connector Type	Number of Positions/Contacts	Height [z]	Opening Size	Opening Size	Width	For Use With/Related Products	Accessory Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Bushing, Grommet Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]
HELLERMANNTYTON NC110	11 mm	0.433 in	0.492 in	12.5 mm	Polyethylene (PE)	Half	Fastener	0.827 in	21 mm	0.512 in	13 mm	Black	UL94 HB
HELLERMANNTYTON NC1110	11 mm	0.433 in	0.492 in	12.5 mm	Polyethylene (PE)	Half	Fastener	0.827 in	21 mm	0.512 in	13 mm	White	UL94 HB
HELLERMANNTYTON 1P9C					Polytetrafluoroethylene (PTFE)	Harness		100 ft	30.48 m			Natural	Non Flammable	260 ░C	-268 °C	Spiral Wrap	3.18 mm	0.125 in	12.7 mm	0.5 in	Chemical Resistant	Abrasion Resistant	0.51 mm	0.02 in
HELLERMANNTYTON RNGFAP6DSMLC							Panel Mount Snap-In					Blue				Coupler									12-Plex	LC Receptacle	Ceramic Zirconia	Plastic	LC Receptacle	Singlemode
HELLERMANNTYTON PCW14							Free Hanging (In-Line)	168 in	4.27 m			White									Molded Plugs										Round Cable	Cat5e	Plug to Plug	8p8c (RJ45 Ethernet)
HELLERMANNTYTON NC80				8.51 mm	Polyethylene (PE)	Half	Fastener	0.622 "	15.8 mm	10 mm		Black	UL94 HB																						0.394 in	0.315 in	8 mm	0.335 in
HELLERMANNTYTON T82S																					Black																		Cable Markers	Marker Pen
HELLERMANNTYTON FHA					Halogen Free Nylon 6 Polyamide (PA6)							Natural	UL94 HB																										Edges Irregular Holes		0.38 mm	1.5 mm	0.059 in	0.015 in	Grommet - Edging Slotted	82 ft	25 m
HELLERMANNTYTON PCW10							Free Hanging (In-Line)	10 ft	3.05 m			White									Molded Plugs										Round Cable	Cat5e	Plug to Plug	8p8c (RJ45 Ethernet)
HELLERMANNTYTON FHC					Halogen Free Nylon 6 Polyamide (PA6)							Natural	UL94 HB																										Edges Irregular Holes		2.21 mm	3.4 mm	0.134 in	0.087 "	Grommet - Edging Slotted	82 ft	25 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.25
		200	$ 2.07
		300	$ 1.97
		500	$ 1.95
Newark	1 Foot	100	$ 4.20
		250	$ 3.85
		500	$ 3.57
		1000	$ 3.36
