0394250002

Active

Molex

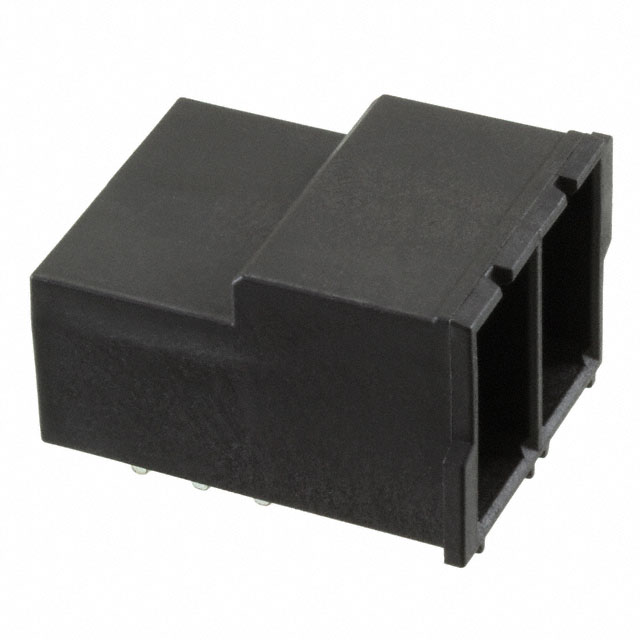

TERM BLOCK HDR 2POS 90DEG 12MM

Search across all available documentation for this part.

Active

Molex

TERM BLOCK HDR 2POS 90DEG 12MM

Technical Specifications

Parameters and characteristics for this part

Specification	0394250002

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.169 in
Contact Tail Length	4.29 mm
Current - UL	85 A
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.8 in
Insulation Height	20.32 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature	130 °C
Pitch [x]	12 mm
Pitch [x]	0.472 in
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)

Part	Housing Material	Number of Positions	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Mounting Type	Number of Levels	Contact Material	Current - UL	Contact Mating Finish	Operating Temperature	Insulation Height	Insulation Height	Type	Termination Style	Material Flammability Rating	Positions Per Level	Header Orientation	Color
Molex 0394250008	Polybutylene Terephthalate (PBT)	8	0.169 in	4.29 mm	12 mm	0.472 in	Through Hole	1	Copper	85 A	Tin	130 °C	0.8 in	20.32 mm	Header Male Pins Shrouded (4 Side)	Solder	UL94 V-0	8	90° Right Angle	Black
Molex 0394250002	Polybutylene Terephthalate (PBT)	2	0.169 in	4.29 mm	12 mm	0.472 in	Through Hole	1	Copper	85 A	Tin	130 °C	0.8 in	20.32 mm	Header Male Pins Shrouded (4 Side)	Solder	UL94 V-0	2	90° Right Angle	Black
Molex 0394250006	Polybutylene Terephthalate (PBT)	6	0.169 in	4.29 mm	12 mm	0.472 in	Through Hole	1	Copper	85 A	Tin	130 °C	0.8 in	20.32 mm	Header Male Pins Shrouded (4 Side)	Solder	UL94 V-0	6	90° Right Angle	Black
Molex 0394250004	Polybutylene Terephthalate (PBT)	4	0.169 in	4.29 mm	12 mm	0.472 in	Through Hole	1	Copper	85 A	Tin	130 °C	0.8 in	20.32 mm	Header Male Pins Shrouded (4 Side)	Solder	UL94 V-0	4	90° Right Angle	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.472" (12.00mm) 90°, Right Angle Through Hole
