FWC100015A-12A
ActiveInventus Power

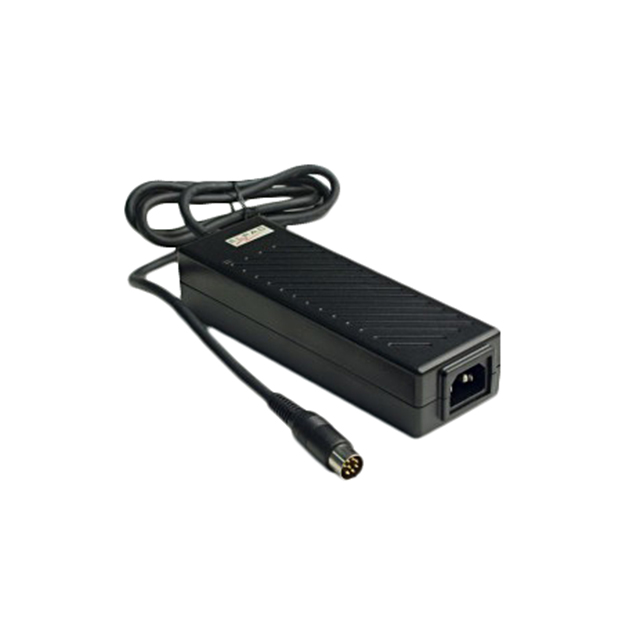

AC/DC DESKTOP ADAPTER 15V 99W
Deep-Dive with AI
Search across all available documentation for this part.
FWC100015A-12A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 15V 99W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FWC100015A-12A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cTUVus |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 6.6 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 200 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 8 Pin |
| Output Connector | DIN |
| Power (Watts) | 99 W |
| Region Utilized | International |
| Size / Dimension [x] | 180.2 mm |
| Size / Dimension [x] | 7.09 in |
| Size / Dimension [y] | 2.27 in |
| Size / Dimension [y] | 57.5 mm |
| Size / Dimension [z] | 1.52 in |
| Size / Dimension [z] | 38.6 mm |
| Voltage - Output | 15 VDC |
| Weight | 725.7 g |
| Weight | 1.6 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 240 | $ 62.13 | |
Description
General part information
FWC100015 Series
15V 99 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
No documents available
