BD00HA5MEFJ-LBH2

NRND

Rohm Semiconductor

LDO, ADJ, 7V, 0.5A, -40 TO 105DEG C

Search across all available documentation for this part.

NRND

Rohm Semiconductor

LDO, ADJ, 7V, 0.5A, -40 TO 105DEG C

Technical Specifications

Parameters and characteristics for this part

Specification	BD00HA5MEFJ-LBH2

Control Features	Soft Start, Enable
Current - Output	500 mA
Current - Quiescent (Iq)	1.2 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	0.154 in
Package / Case	8-SOIC
Package / Case	3.9 mm
Protection Features	Over Temperature, Over Current, Short Circuit

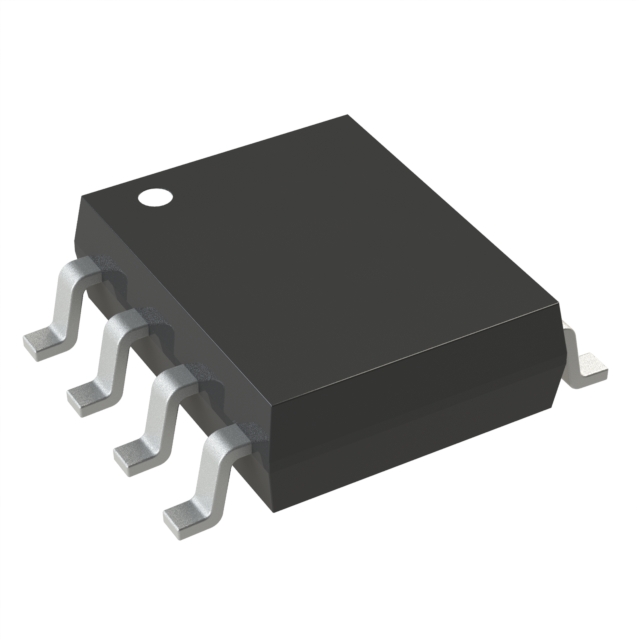

Supplier Device Package	8-HTSOP-J
Voltage - Input (Max) [Max]	8 V
Voltage - Output (Max) [Max]	7 V
Voltage - Output (Min/Fixed)	1.5 V
Voltage Dropout (Max) [Max]	1.2 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Dropout (Max) [Max]	Current - Quiescent (Iq)	Voltage - Output (Max) [Max]	Supplier Device Package	Mounting Type	Package / Case	Package / Case	Package / Case	Voltage - Input (Max) [Max]	Current - Output	Voltage - Output (Min/Fixed)	Number of Regulators	Control Features	Output Configuration	Protection Features	Output Type
Rohm Semiconductor BD00HA5MEFJ-LBH2	-40 °C	105 ░C	1.2 V	1.2 mA	7 V	8-HTSOP-J	Surface Mount	0.154 in	8-SOIC	3.9 mm	8 V	500 mA	1.5 V	1	Enable Soft Start	Positive	Over Current Over Temperature Short Circuit	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-HTSOP-J
