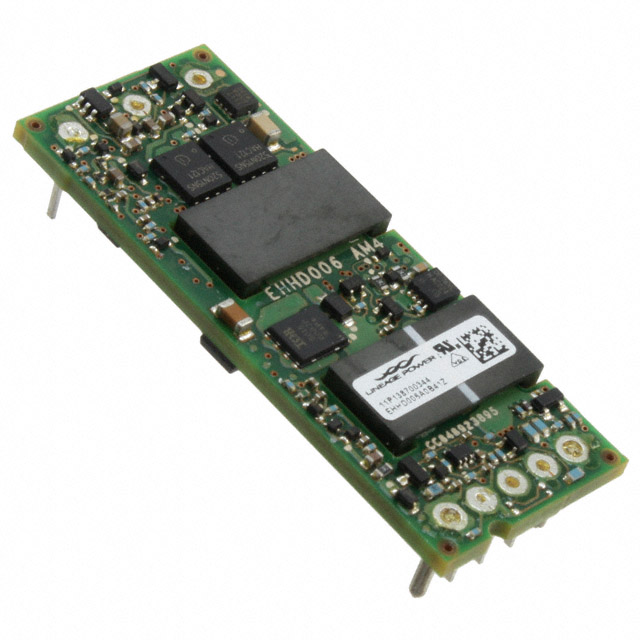

EHHD006A0B641Z

Active

OmniOn Power™

DC DC CONVERTER 12V 72W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 12V 72W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Power (Watts)	Mounting Type	Voltage - Isolation	Package / Case	Type	Voltage - Input (Max) [Max]	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Current - Output (Max) [Max]
OmniOn Power™ EHHD006A0B841-HZ	18 V	1	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	22.86 mm	0.3 in	22.8 mm	7.6 mm	2.28 "	57.9 mm	92.5 %	72 W	Through Hole	2250 VDC	8-DIP Module	Isolated Module	75 V	Active Low Enable	85 °C	-40 °C	12 V	6 A
OmniOn Power™ EHHD006A0B641Z	18 V	1	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	22.86 mm	0.3 in	22.8 mm	7.6 mm	2.28 "	57.9 mm	92.5 %	72 W	Through Hole	2250 VDC	8-DIP Module	Isolated Module	75 V	Active Low Enable	85 °C	-40 °C	12 V	6 A
OmniOn Power™ EHHD006A0B41Z	18 V	1	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	22.9 mm	7.8 mm	0.9 "	0.31 in	57.9 mm	2.28 in	92.5 %	72 W	Through Hole	2250 VDC	1/8 Brick 8-DIP Module	Isolated Module	75 V	Active Low Enable	85 °C	-40 °C	12 V	6 A
OmniOn Power™ EHHD006A0B641-HZ	18 V	1	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	22.86 mm	0.3 in	22.8 mm	7.6 mm	2.28 "	57.9 mm	92.5 %	72 W	Through Hole	2250 VDC	8-DIP Module	Isolated Module	75 V	Active Low Enable	85 °C	-40 °C	12 V	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	504	$ 29.90

General part information

Isolated Module DC DC Converter 1 Output 12V 6A 18V - 75V Input
