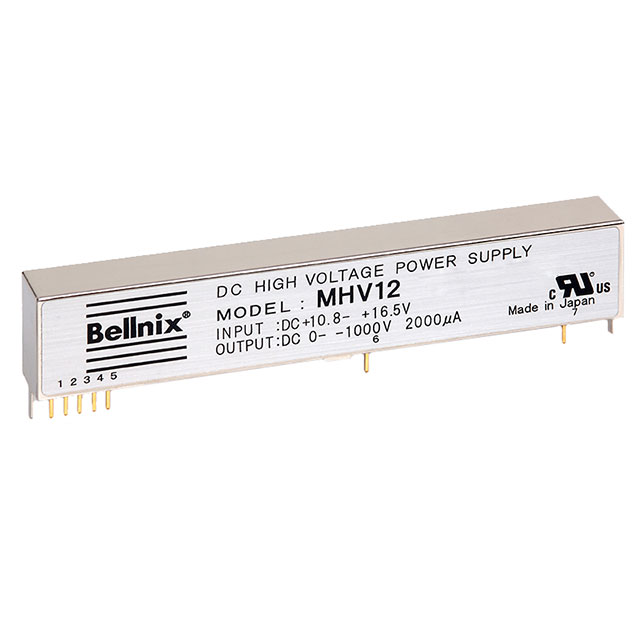

MHV12-1.0K2000P

Active

Bellnix Co., Ltd.

DC DC CONVERTER 1000V 2W

Search across all available documentation for this part.

Active

Bellnix Co., Ltd.

DC DC CONVERTER 1000V 2W

Technical Specifications

Parameters and characteristics for this part

Specification	MHV12-1.0K2000P

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 mA
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2 W
Size / Dimension [x]	110 mm
Size / Dimension [x]	4.33 in
Size / Dimension [y]	0.47 "
Size / Dimension [y]	12 mm
Size / Dimension [z]	0.78 in
Size / Dimension [z]	19.8 mm
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Output 1	1000 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Features	Voltage - Input (Min) [Min]	Type	Applications	Number of Outputs	Power (Watts)
Bellnix Co., Ltd. MHV12-470S06N	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	Active Low Enable	-10 °C	60 °C	-470 V	13.2 V	5.6 mA	Through Hole	Adjustable Output Remote On/Off	10.8 V	High Voltage - Non-Isolated Module	ITE (Commercial)	1	2.6 W
Bellnix Co., Ltd. MHV12-1.0K2000N	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	Active Low Enable	-10 °C	60 °C	-1000 V	16.5 V	2 mA	Through Hole	Adjustable Output Remote On/Off	10.8 V	High Voltage - Non-Isolated Module	ITE (Commercial)	1	2 W
Bellnix Co., Ltd. MHV12-1.0K2000P	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	Active High Enable	-10 °C	60 °C	1000 V	16.5 V	2 mA	Through Hole	Adjustable Output Remote On/Off	10.8 V	High Voltage - Non-Isolated Module	ITE (Commercial)	1	2 W
Bellnix Co., Ltd. MHV12-470S06P	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	Active High Enable	-10 °C	60 °C	470 V	13.2 V	5.6 mA	Through Hole	Adjustable Output Remote On/Off	10.8 V	High Voltage - Non-Isolated Module	ITE (Commercial)	1	2.6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output 1000V 2mA 10.8V - 16.5V Input
