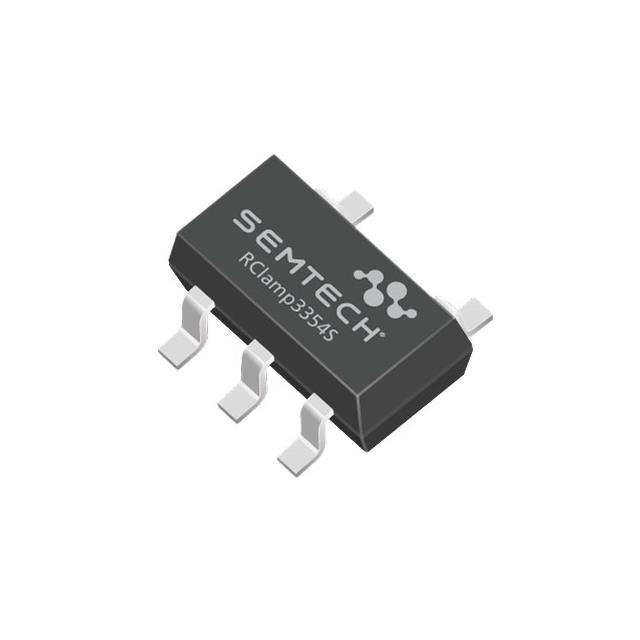

RCLAMP3354S.TCT

Active

Semtech Corporation

4-LINE 3.3V 5PF LOW CAP SOT-23 5L

Search across all available documentation for this part.

Active

Semtech Corporation

4-LINE 3.3V 5PF LOW CAP SOT-23 5L

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP3354S.TCT

Applications	Ethernet
Capacitance @ Frequency	3.8 pF
Current - Peak Pulse (10/1000µs)	25 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-55 C
Package / Case	SC-74A, SOT-753
Power - Peak Pulse	400 W
Power Line Protection	True
Supplier Device Package	SOT-23-5
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	3.5 V
Voltage - Clamping (Max) @ Ipp [Max]	16 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Supplier Device Package	Type	Mounting Type	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Power Line Protection	Applications	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]
Semtech Corporation RCLAMP3354S.TCT	SOT-23-5	Steering	Surface Mount	3.8 pF	25 A		Ethernet	4	16 V	SC-74A SOT-753	3.5 V	400 W	3.3 V	85 C	-55 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16V Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-5

Technical documentation and resources

No documents available
